0.4-0.8mm Thickness Profile Roof Batten Roll Forming Machine 13 Stations

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SS-MF
Certification :	SGS, ISO9001, CE
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10 sets per month
Delivery Time :	35-40 days

Add to Cart

Product Details
Company Profile

0.4-0.8mm Thickness Profile Roof Batten Roll Forming Machine 13 Stations

0.4-0.8mm Thickness Profile Roof Batten Roll Forming Machine 13 Stations

Technical parameter

Item	Technical data
Steel sheet thickness	0.4-0.8mm (depend on requirement )
Hydraulic power	4kw
Transmission way	chain
Chain	1 inc chain
Capacity of Decoiler	3 Ton passive decoiler
Forming Speed	10-12m/min
Roller Groups	about 13 stes main roller
Roller Material	45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
Roller Diameter	100mm
Principal Axis	45# high grade steel with quenching treatment
Main Motor Power	5.5 Kw
Dimension	55006001000mm

Applications

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...

Main Components

Machine name	Quantity
3 ton manual Decoiler	1 set
Main roll forming machine	1 set
Hydraulic station	1 set
Hydraulic cutting device	1 set
Finished poducts tabels	2 stes
PLC control system	1 set
Ebossing roller	1 set

Furring Channel Working Flow

De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table

Furring Channel Profile Drawing

Advantage

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

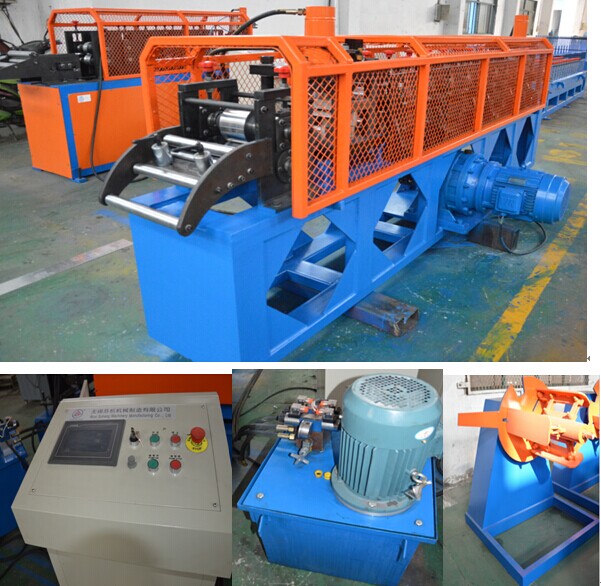

Machine Photo

Loading pictures

Why choose us

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
