Siemens Motor Hot Selling Vineyard Post Roll Forming Machine 200mm Feeding Width

Main Roll forming machine technique data

Suitable Plate Material: thickness 1.5-2mm, Galvanized steel or blank steel

Working Speed: about 20meters / min

Forming machine: about 16 stations

Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

Material of Shaft: 45# Advanced Steel (Diameter: 75mm), thermal refining

Drive system: Gear box

Main Power with reducer: 11KW WH Chinese Famous

Cutting: Hydraulic Cutting Cr12mov

Material of Cutting Knife: Cr12Mov, Quench HRC58-62

Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand

The whole machine is controlled by industry computer-PLC.

PLC--Panasonic, English and Chinese Language

​

Spare parts

​Working Flow of Roll Forming Machine

Decoiler----feedingwithguide---Punching----Rollforming----Cutting----Products collecting

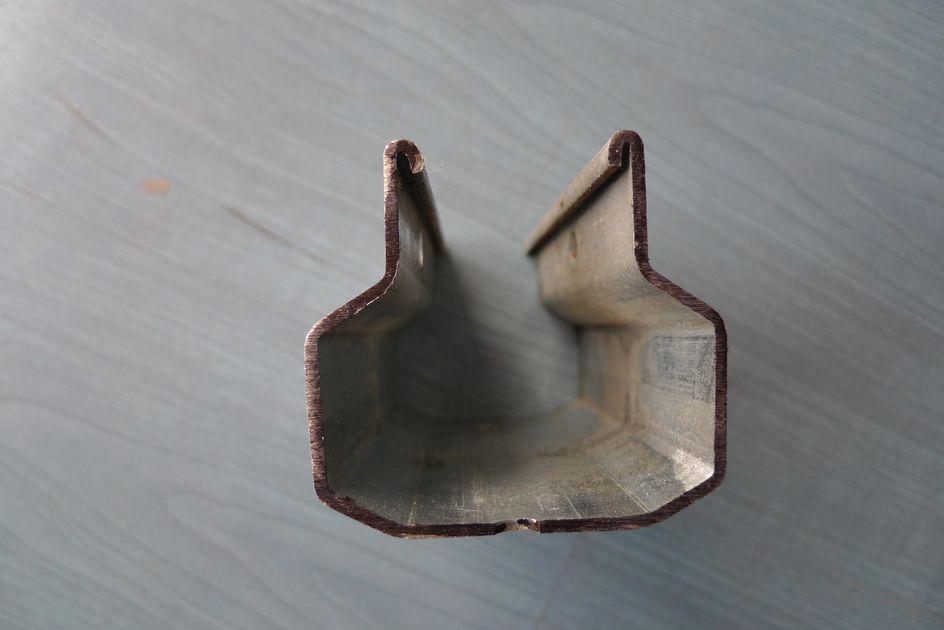

Profile of product

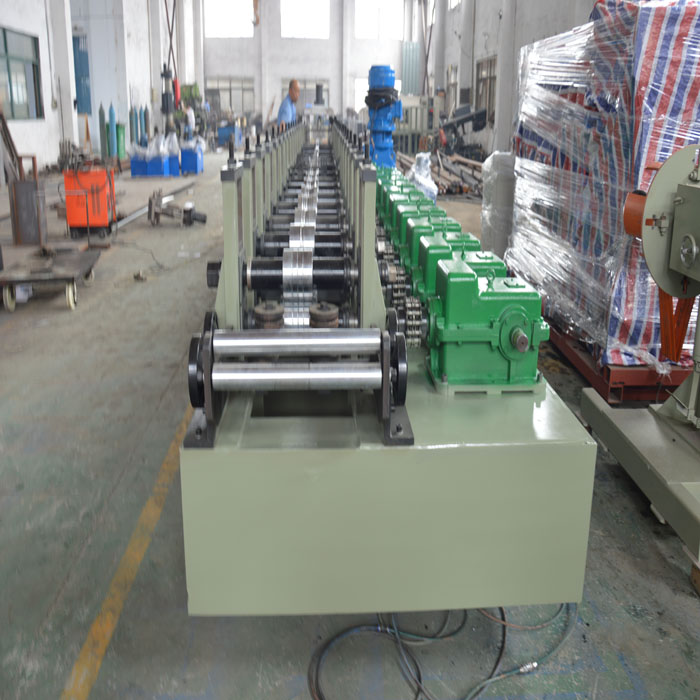

Machine pictures

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
