6500x600x800mm Size 0.45-0.8 mm Galvanized Wall Angle Forming Equipment

Ask Lasest Price
Brand Name :	Sussman
Model Number :	CZP
Certification :	CE ISO 9001
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :	10 set per month
Delivery Time :	60-90 days

Add to Cart

Product Details
Company Profile

6500x600x800mm Size 0.45-0.8 mm Galvanized Wall Angle Forming Equipment

6500x600x800mm Size 0.45-0.8 mm Galvanized Wall Angle Forming Equipment

Technical Parameter

	Items	Specifications
Material of coil	Material Thickness	0.45-0.8 mm galvanized
De-coiler	Weight	3 ton manual
Forming system	Rolling Speed	15-20m/min
	Roller Stations	About 13 stations forming
	Roller Material	Gcr15 Steel with quenching
	Shaft Material	45# Steel Diameter 75mm shaft
	Maim Motor Power	5.5 kw
	Hydraulic cutting Power	3 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	1 set of cutting blade
Electrical control system	Electric Source	220V, 60HZ,3 phase
Electrical control system	Control System	PLC with touch screen Japanese Panasonic and Yaskawa Brand
	Weight	About 3.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 6500mm* Width 600mm* Height 800m

Main Components

Machine list	3 ton passive de-coiler	1 set
	Feeding with guide	1 set
	Main roll forming machine	1 set
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Stop cutting device	1 unit
	Safety cover	1 unit
	Out table	2 units

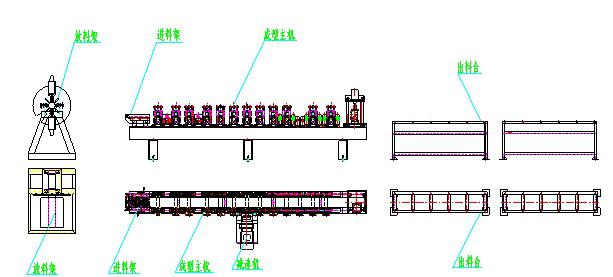

Working Flow of Roll Forming Machine

feedingwithguide—Rollforming——Cutting—Products collecting

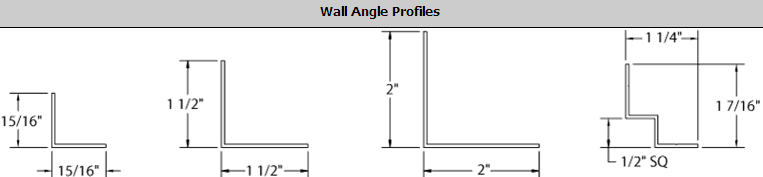

Standard Profile Drawing of product
