PLC Control Roof Panel Roll Forming Machine 0.3-0.8mm Profile
Thickness
Technological process
Uncoiling—Feedingwithguide——Rollforming—Cutting—Products collecting
Coating=Galvanized Iron/Zinc-Aluminium
Thickness=0.3-0.8mm
Sheet width=1220mm and 1000mm (Input)
Sheet width=1000mm(Output)
Yield Strength=550Mpa
Machine list
| Machine list | 5 tons passive de-coiler | 1 set | |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Out tables | 2 units | |
Thchnical data
Roll Forming Machine: RF-RP
Rolling Speed : 10-12m/min(cutting time is not include)
Steel sheet Thickness: 0.3-0.8mm color painted sheets
Coil width 1220mm and 1000mm
Control System: PLC Panasonic
Roller Stations: about 18 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠70mm,material is 45# forge steel, Chrome
with quenching
Maim Motor Power: 7.5kw Anhui wannan Brand
Hydraulic Pressure: 12Mpa
Material Of The Stations: Wall plate thickness 16mm
Tolerance: +1.5mm
Power supplier: 415V, 50HZ,3 phase
Way Of Drive:1 inch single chain
Color Of The Machine :blue
The size of the forming machine:9000*1500*1000mm
Machine weight: about 6 tons
Un-coiler:
5 ton passive decoiler
Coil inner Diameter: ￠508-610mm
Max out diameter of the coil: ￠1500mm
Max Coil Width: 1250mm
t;mso-border-right-alt:0.5000pt solid
windowtext;border-top:none;;mso-border-top-alt:0.5000pt solid
windowtext;border-bottom:1.0000pt solid
windowtext;mso-border-bottom-alt:0.5000pt solid windowtext;" >
Cutting:
(1) Cutting motion: The main machine stops and then cut
automatically. After cutting, the main machine re-starts
automatically.
(2) Material of blade: CR12 with heat treatment
(3) Length measuring: Automatically
(4) The cutting thickness: 0.3- 0.8mm
(5) Hydraulic Station Power: 4 KW
Out table:
It adopts welded steel and supported roller to transmit the
products.
Size:4000*1350*1000mm
Control Box:
Electrical control system part
(1) Power supplier: 380 V, 50 Hz, 3Phase (adjusted with the
requestment)
(2) length & quantity measurement automatically;
(3) length & quantity controlled by PLC, Panasonic Japan Brand
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) Unit of length: millimeter (switched on the control panel)

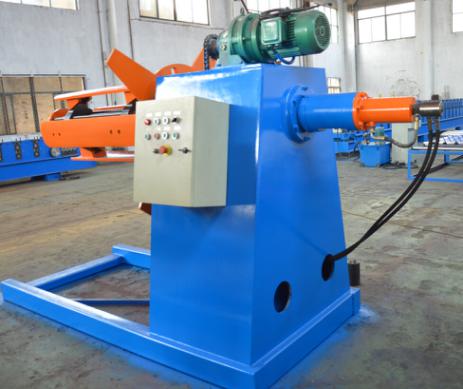

Machine pictures
Assembly and commissioning:
Warranty:
|
One engineer will visit Buyer’s workshop for install, commission
and training for 7 days, the salary of our engineer cost USD150 per
day, The customer should ensure the pre-installation being carried
out appropriately. The buyer should pay round air tickets, the
local board and lodging and the transportation cost for our
engineer.
12 months warranty, Starting from the date of the successful
installation and commissioning of the equipments.
|
