18.5KW Perforated Solar Panel Bracket Rolling Machine With Chian
Transmission
1. Slotted Strut Channel Technical Parameter
1. Forming Steps: 19 stations
2. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
3. Suitable Plate Material: thickness 1.5-2.5mm, Galvanized steel
or blank steel
4. Working Speed: 9-10 meters / min
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal
refining
6. Driven system: Chain Driven 2 inches
7. Main Power with reducer: 22KW WH Chinese Famous
8. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
9. The whole machine is controlled by industry computer-PLC.
10 PLC--Panasonic, Japan English and Chinese Language
11 Touch Screen--Panasonic Japan
12 Encoder--Omron, Japan
13 Electric parts--Schneider
2. Slotted Strut Channel Machine List
S.N | Equipment name | Quantity |
1 | 3T hydraulic un-coiler | 1 set |
2 | Leveling device NC 300mm | 1 set |
3 | Servo feeding device 300mm | 1 unit |
4 | Press machine JH21-63 | 1 unit |
5 | Main roll forming machine | 1 set |
6 | Fly saw cutting | 1 set |
7 | control box | 1 set |
8 | Out tables | 2 units |
9 | Spare parts | 1 package |
10 | Punching die set | 1 set |
3. Slotted Strut Channel Working Flow
4. Our Advantages
Professional Technical Team
The company has professional teams which are respectively
responsible for product development, mechanical assembly and
precision parts processing.
Our products follow the principle of production self-inspection,
storage inspection and dispatch inspection.
Our After-sales Service:
Our equipment has a warranty of one year and we only charge the
repair cost outside one year. our equipment has been standardized
and modularized.

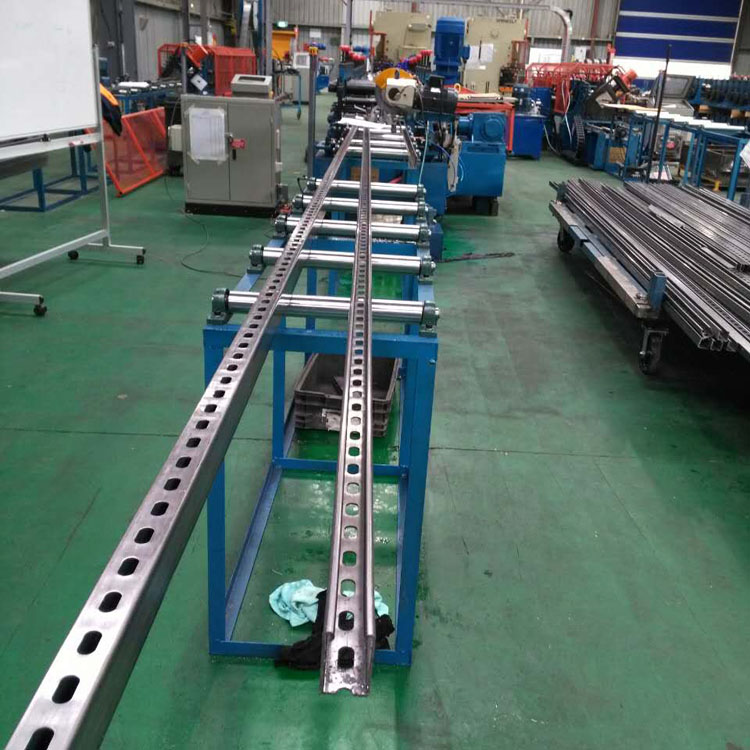

5. Machine Picture
6. FAQ
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 10 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two
ends of the shaft every month,replace the hydraulic oil every 1-2
years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year, if the broken parts can't repair, we can free send the new parts
replace the broken parts to you within warranty period
Q:Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most
suitable design and production plan for the machine
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
