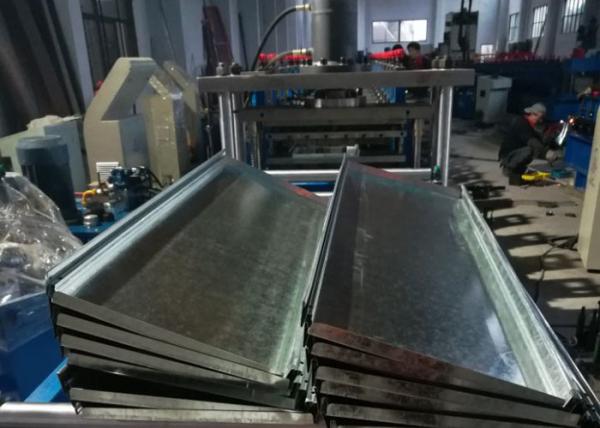

18 Steps Rack Roll Forming Machine , Metal Rollforming Systems Chain Drive

18 Steps Rack Roll Forming Machine , Metal Rollforming Systems Chain Drive

This shelf production line is combined with decoiler, feeding system, leveler system,punching system, forming system , cutting system , electric control system , etc.

Rack Shelf Machine Parameters

Name	Description
Forming stations	18 stations
Material of Roller	Gcr15, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞150
Suitable raw material	0.7-1.2mm galvanized coil S235JR
Material width	200-600mm
Material of Main Shaft	45# high quality steel (diameter＞50)
Driven system	Chain Driven 1.5 inches
Chains’ material	45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
Cutting	Hydraulic Cutting Cr12mov
Material of Cutting Knife	Cr12Mov, Quench HRC58-62
Hydraulic Station Power	4KW
Control system	PLC Panasonic with touch screen

Rack Shelf Machine Specifications

1. Manual uncoiler

a) Coil inner diameter : 460-520MM.
b) Coil/strip width: 300- 500MM.
c) Load capacity – 5T
d) Stands on a wheeled base to allow transverse strip adjustment.

2. Roll forming

In order to keep the product shape and precision, adopts welded sheet

structure, motor reducer drive, chain transmission,roller surfaces polishing, hard planting, heat treatment and galvanization treatment

3. Hydraulic cutting

It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
Components: It contains one set of blade, one hydraulic cylinder and one
cutter machine.

Our Company

Sussman Machinery is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine,Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit,Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron andsteel production enterprises' growing demands.
