customized Sussman Shelf Box Roll Forming Equipment 18 Steps 3-15 m / Min Speed

Warehouse shelf upright system roll forming machine is widely used to produce upright post, shelf panel, back panel/ board, box beam and step beam machine, beam welding machine.
The machine can do thickness is from 0.7-1.2mm with raw material Cold-rolled Steel, Galvanized Coil, Carbon steel.

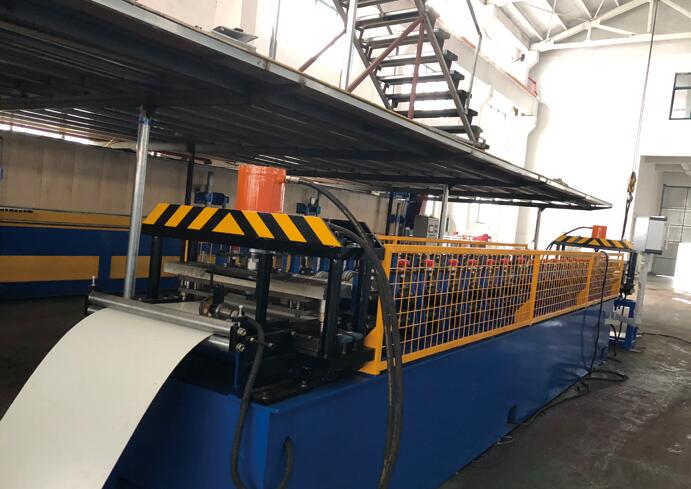

The shelf box machine is together with the top hat machine to make the shelf box for the supermarket shelf. Sussman Shelf box machine is included the de-coiler, the hydraulic punching device, the main roll forming machine, and the hydraulic cutting device. The shelf back panel machine can make width from 100-600mm, also can do 200-900mm. It is the good choice for the supermarket shelf business.
Our produced profile meet ISO, CE, UL standards, and our machine is applied to Warehouse supermarket ,industry or home. We have experience of exporting our pallet racking system roll forming machine to Mexico, Bangladesh, Costa Rica, Russia,Dominica, etc.

The technique data

1. Materials to form: According to the customers’ requirement width, thickness 0.7-1.2mm, length is variable from 0-10000mm

2. Forming steps: About 18 steps

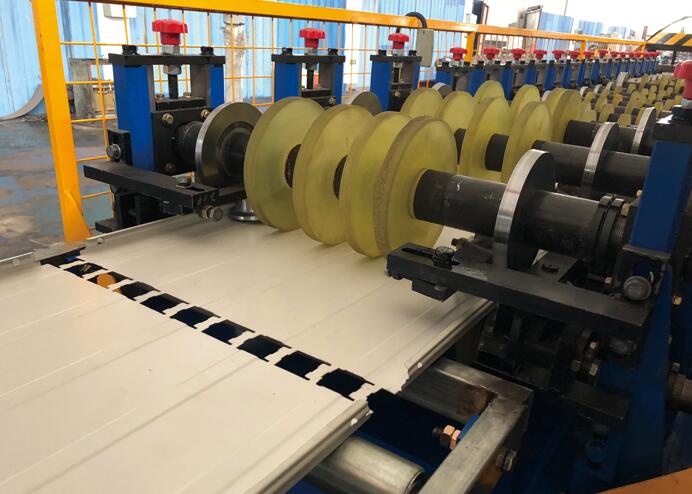

3. Material of rollers:GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150

4. Material of main shaft : 45# high quality steel (diameter＞￠50)

5. Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13

6. Cutting: Hydraulic cutting; quenching HRC58-62

7. Electronic control: PLC control

8. Dimension of machine: 12000mmX2000mmX900mm

10. Drive system: Chain drive, 7.5KW main motor power, working speed: 3-15m/min;

11. Welding structure: material of fixed beam and walking beam: hot-rolled steel, the base and rack are be gantry planer processing after welded, work platform is not allowed stress deformation; main machine table-board’s plainness ＜2mm/1000mm

12. Parts: Slide: imported from Japan; bearing: Zhonghang Brand of Harbin

13. Punching: Punching the holes at the press machine before forming the shapes

14. Bending: Bending after the hydraulic cutting

Parts of machine

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
