PLC Control Shelf Box Metal Roll Forming Systems 3-5 M/ Min Speed With Hydraulic Cutting

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-RS
Certification :	CE ISO 9001
Price :	USD29500-USD39500 per set
Payment Terms :	L/C, T/T
Supply Ability :	5 set per month
Delivery Time :	75 days

Add to Cart

Product Details
Company Profile

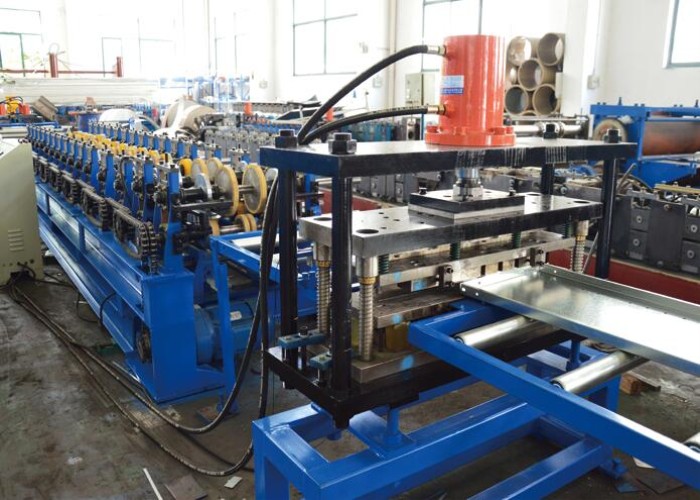

PLC Control Shelf Box Metal Roll Forming Systems 3-5 M/ Min Speed With Hydraulic Cutting

PLC Control Shelf Box Metal Roll Forming Systems 3-5 M/ Min Speed With Hydraulic Cutting

Rack Shelf Machine Parameters

1. Material width:200-600mm

2. Forming stations: 18 stations

3. Suitable raw material: 0.7-1.2mm galvanized coil S235JR

4. Material of Roller: Gcr15, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞150

5. Material of Main Shaft: 45# high quality steel (diameter＞50)

6. Driven system: Chain Driven 1.5 inches

7. Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 4KW

11. Control system:PLC Panasonic with touch screen

Parts of machine

name	quantity (set)
De-coiler	1set
Punching	1set
Level device	1set
Hydraulic cutting and bending machine	1set
Main roll forming machine	1set
Run out table	2 sets
Control panel	1set
Subtotal FOB Shanghai	USD55,000

Racking Shelf Profile Drawing

Rack Shelf Machine Specifications

1. Manual uncoiler

a) Coil inner diameter : 460-520MM.
b) Coil/strip width: 300- 500MM.
c) Load capacity – 5T
d) Stands on a wheeled base to allow transverse strip adjustment.

2. Roll forming

In order to keep the product shape and precision, adopts welded sheet

structure, motor reducer drive, chain transmission,roller surfaces polishing, hard planting, heat treatment and galvanization treatment

3. Hydraulic cutting

It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
Components: It contains one set of blade, one hydraulic cylinder and one
cutter machine.
