    Blue Rack Roll Forming Machine , Upright Roll Forming Machine Controlled By PLC System

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SS-RC
    Certification : CE
    Price : USD + (30000 - 72000) + per set
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10 + sets + per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Blue Rack Roll Forming Machine , Upright Roll Forming Machine Controlled By PLC System

    12-15 meters / min working speed upright racking machine controlled by PLC system


    Advantages


    1.We are design the one unit one machine, the control box and the hydraulic station for the cutting are all


    put under the bedding,when you get the machine, the machine is one unit, no need to assemble and


    connect the complicate cable of the machine, you only need to connect one main cable,


    2. ​the touch screen is hang over, it is not under the floor.


    3. the accuracy of our machine is -/+0.5-1mm.


    4. the roller is solid and electroplated, which will not have rust.


    5. the material are all national standard and cutter will not have burr.


    Parametrs


    Suitable Plate Material


    Galvanized steel or blank steel

    thickness


    0.5-2.0mm

    Working Speed


    12-15 meters / min

    Forming Steps


    18 stations

    Material of Roller


    Gcr15, Quench HRC58-62 Plated Chrome

    Material of Shaft


    45# Advanced Steel

    Driven system


    Chain Driven 1.5 inches

    Main Power


    11KW

    Cutting


    Hydraulic Cutting Cr12mov

    Material of Cutting Knife


    Cr12Mov, Quench HRC58-62

    Hydraulic Station Power


    7.5KW

    Control system


    PLC control

    Cutting holder


    straight cutting by 3 pieces of blades

    Machine list


    S.N


    Equipment nameQuantity

    1


    3T hydraulic un-coiler1 set

    2


    Leveling device 400mm1 set

    3


    Servo feeding device 400mm1 unit

    4


    Press machineJH21-801 unit

    5


    Main roll forming machine1 set

    6


    Cutting holder1 set

    7


    Hydraulic station1 set

    8


    Control system ( including control box)1 set

    9


    Out tables2 units

    10


    Spare parts1 package

    11


    Cutting dies1 set

    12


    Punching die set1 set

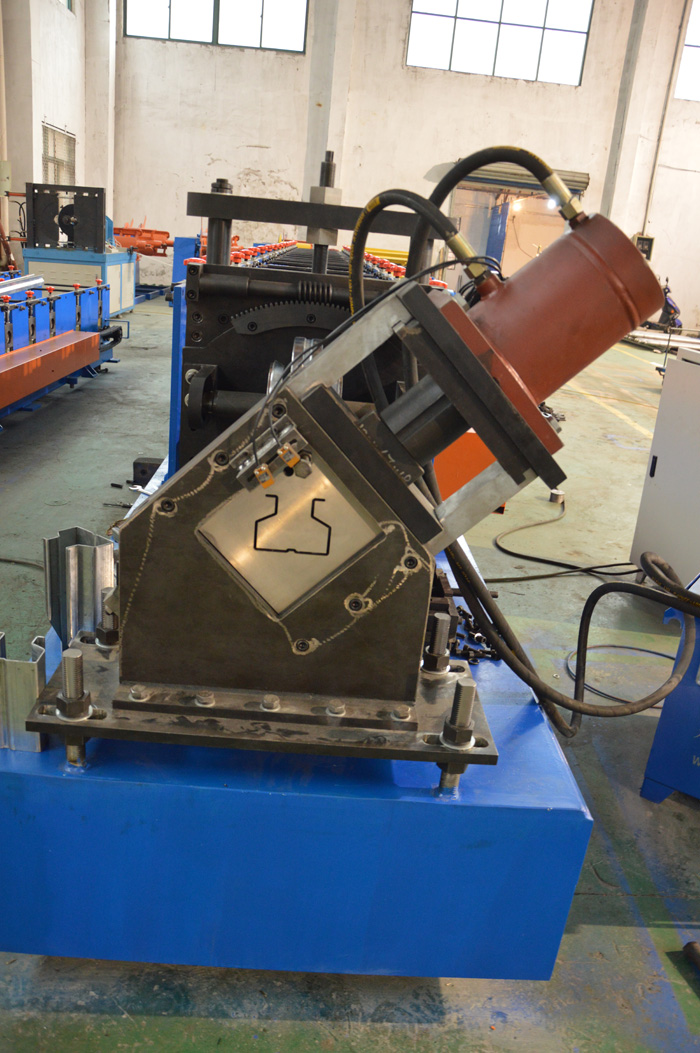

    Machine pictures





    Sample and appliaction


    ​Rack and shelf is a material handling storage aid system designed to store materials on pallets
