Mild Steel CZ Purlin Roll Forming Machine , C Lipped Channel Roll Forming Machine

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-Cp
Certification :	SGS.CE.ISO
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	10 sets per month
Delivery Time :	60 days

Add to Cart

Product Details
Company Profile

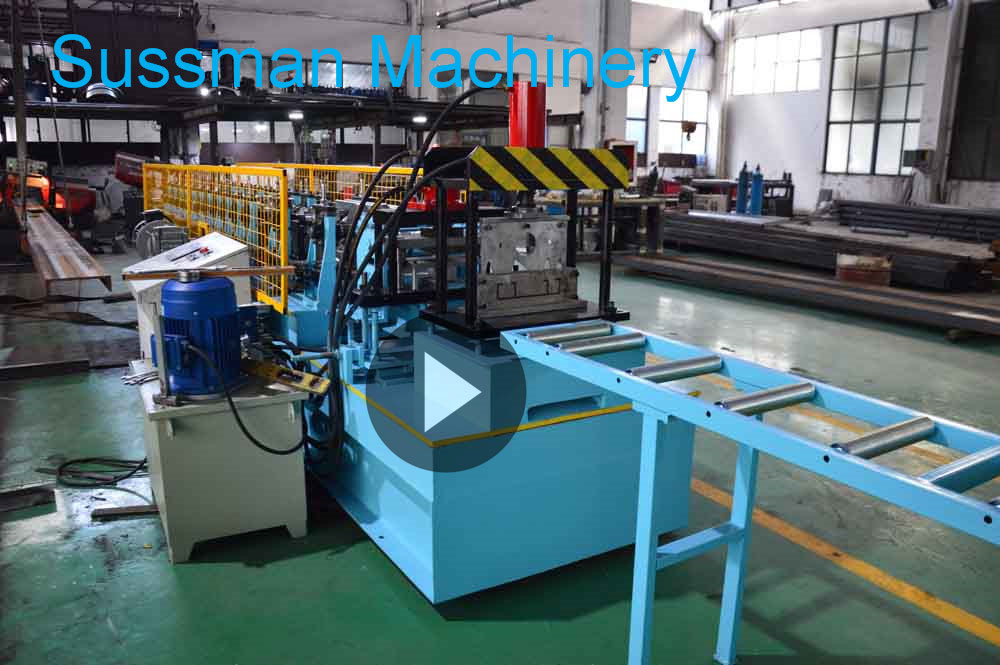

Mild Steel CZ Purlin Roll Forming Machine , C Lipped Channel Roll Forming Machine

C Lip Mild Steel Purlin Machine , C Lipped Channel Roll Forming Machine

These purlins machine are manufactured by quality approved raw materials under our experienced professionals techniques. The offered purlins are extensively used in the construction of buildings and can be made in various shapes, sizes and thickness.

Material of coil	Material Thickness	1.5-3.0mm
	Width	from 80mm to 300mm
	Height	40-100mm
De-coiler	Weight	3 ton manual decoiler
Forming system	Rolling Speed	0-12 m/min
	Roller Stations	About 18 stations forming
	Roller Material	Gcr15 Steel with quenching
	Shaft Material	45# Steel Diameter 76mm shaft
	Main Motor Power	11KW
	Hydraulic cutting Power	7.5KW
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	1 set of cutting blade
Electrical control system	Electric Source	380V, 50HZ, 3phase
	Control System	PLC with touch screen
	Weight	About 6 tons
	Way Of Drive	Chain driven

C Z Purlin Technical Parameter

Equipment name	Quantity
3T passive uncoiler	1 set
Main roll forming machine	1 set
Hydraulic post cutting	1 set
Hydraulic punching	1 set
Hydraulic station	1 set
4 meters out tables	1 set
Control box	1 unit

Working Flow

Decoiler—feeding with guid— roll forming----punching&cutting—run out table

Each part of machine

1.3T Passive De-coiler
Diameter: 460-520mm expansion.
Capacity: 3000kg
Max Coil Width: 500mm

2.Leveling device
Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up ,it can guarantee that the products are neat, parallel and everything is uniformity.
7 rolls leveling, 3 rolls up and 4 rolls down
Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.

3. Punching and cutting device

It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine

cutting blade material:Cr12 Mov steel with high treatment
hydraulic station pressure: 20 MPa
Hydraulic coil:46#

4.Control Box:

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.

If there are any other customized machines that you are interested in, please contact us for further discussion. We will provide you for the most suitable machine solution for your market.
