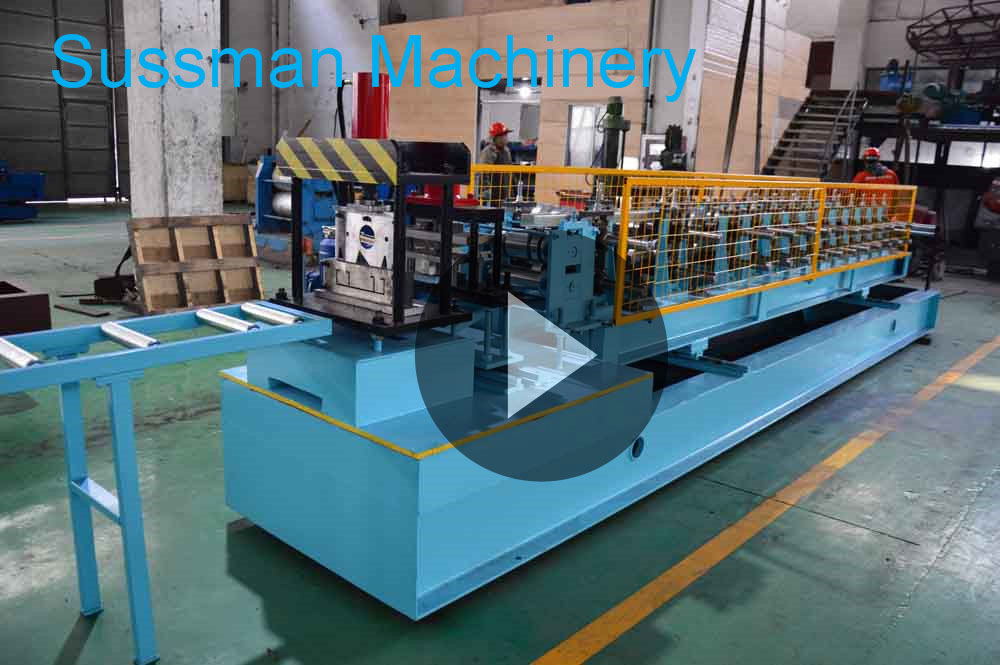

Post Cutting Post Punching CZ Purlin Roll Forming Machine , C Steel Frame Machine

Post Cutting Post Punching C Shape Roll Forming Machine , C Steel Frame Machine

The C purline machine accept the C puline size from 80-100 MM. And can adjust the size by automatically.

This C purline machine is simple and easy operating.

Especally with low prices cost. it is helpful to the boss who is first begin to start this C purline producing business.

Material of coil	Material Thickness	1.5-3.0mm
	Width	from 80mm to 300mm
De-coiler	Weight	3 ton
Forming system	Rolling Speed	0-12 m/min
	Roller Stations	About 18 roller stations
	Roller Material	Gcr15 Steel with quenching 50-55HRC
	Shaft Material	45# Steel
	Main Motor Power	11KW
	Hydraulic cutting Power	7.5KW
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ, 3phase
	Control System	PLC with touch screen
	Weight	About 6 tons
	Way Of Drive	Chain driven

C Purlin Technical Parameter

Equipment name	Quantity
3T manual uncoiler	1 set
Roll forming machine	1 set
Hydraulic cutting	1 set
Hydraulic punching	1 set
Hydraulic station	1 set
4 meters out tables	1 set
Control box	1 unit
Spare parts	1 package

Each part of C Purlin Machine

1.3T Manual De-coiler

1: Coil inner diameter: 450-520mm

2: Out Diameter: 1200 mm

3: Coil max width: 500mm

4:Max carrying capacity: 3000kg

2. Punching and cutting device

1:Cutting power by hydraulic,7.5KW

2:Hydraulic working pressure: 20Mpa

3:Cutting after forming: Cut the sheet after

roll forming to required length

4:Material of blade:Cr12Mov with heat

treatment 58-60°

5:Length measuring: Automatic encoder

length measuring, brand: Omron

6:Tolerance of length: 3000mm+/- 1.5mm

4.Control Box

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)

(2) Length & quantity measurement automatically.
(3) Length & quantity controlled by PLC.
(4) Length inaccuracy can be amended easily.
(5). Control panel: Button-type switch and touch screen
(6) The language in the touch screen: English and Chinese

If there are any other customized machines that you are interested in, please contact us for further discussion. We will provide you for the most suitable machine solution for your market.
