    C Section Frame Roof Purlins Sheet Rolling Machine For 80 To 300mm High Strength Galvanized Steel

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-CP
    Certification : SGS.CE.ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

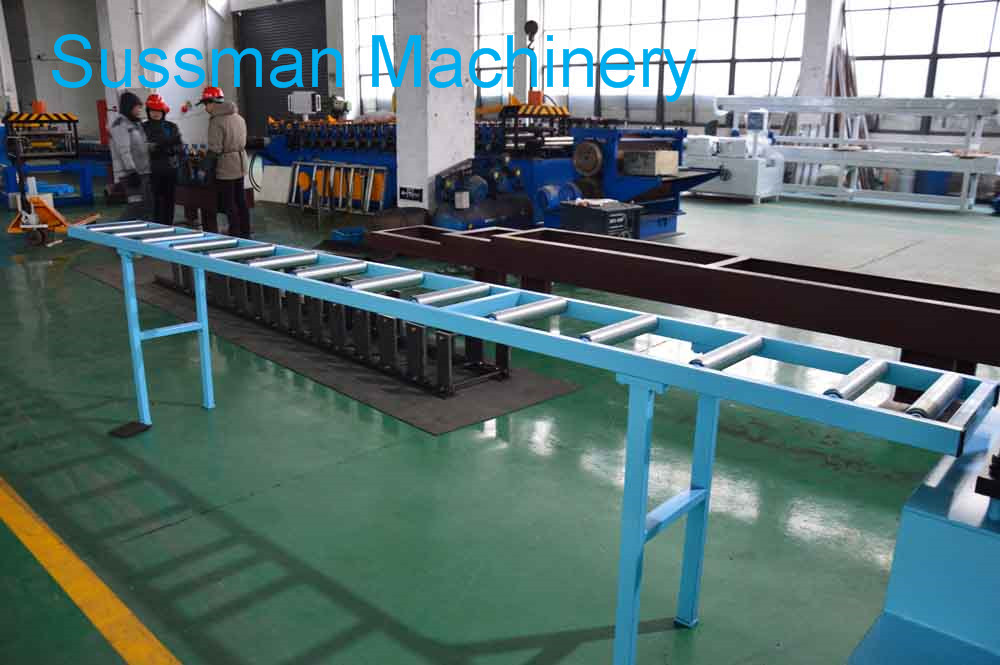

    C Section Frame Roof Purlins Sheet Rolling Machine For 80 To 300mm High Strength Galvanized Steel

    80 to 300mm High Strength Galvanized Steel C Section Frame Roof Purlins Machine


    1.The C purline machine accept the C puline size from 80-100 MM. And can adjust the size by automatically.


    2.This C purline machine is simple and easy operating.


    3.Especally with low prices cost. it is helpful to the boss who is first begin to start this C purline producing business.


    4.Optional Punch hole at any position of purlin web side and flange side


    Material of coil

    Material Thickness

    1.5-3.0mm


    Width

    from 80mm to 300mm

    De-coiler

    Weight

    3 ton

    Forming system

    Rolling Speed

    0-12 m/min

    Roller Stations

    About 18 roller stations

    Roller Material

    Gcr15 Steel with quenching 50-55HRC

    Shaft Material

    45# Steel

    Main Motor Power

    11KW

    Hydraulic cutting Power

    7.5KW

    Cutting system

    Material Of Cutting

    CR12 with quench treatment

    Hardness

    HRC58-62

    Tolerance

    +-1.5mm

    Electrical control system

    Electric Source

    380V, 50HZ, 3phase

    Control System

    PLC with touch screen

    Weight

    About 6 tons

    Way Of Drive

    Chain driven



    Each part of C Purlin Machine

    1.3T Manual De-coiler


    1: Coil inner diameter: 450-520mm

    2: Out Diameter: 1200 mm

    3: Coil max width: 500mm

    4:Max carrying capacity: 3T


    2. Cutting device

    1:Cutting power by hydraulic,7.5KW

    2:Hydraulic working pressure: 20Mpa

    3:Material of blade:Cr12Mov with heat

    treatment 58-60°

    4:Length measuring: Automatic encoder

    length measuring, brand: Omron

    5:Tolerance of length: 3000mm+/- 1.5mm

    6:Cutting after forming: Cut the sheet after

    roll forming to required length


    3.Control Box

    (1) Power supplier: 380V, 50 Hz, 3Phase

    (2) Length & quantity measurement automatically.
    (3) Length & quantity controlled by PLC.
    (4) Length inaccuracy can be amended easily.
    (5). Control panel: Button-type switch and touch screen
    (6) The language in the touch screen: English and Chinese



    If there are any other customized machines that you are interested in, please contact us for further discussion. We will provide you for the most suitable machine solution for your market.
