10 Steps Light gauge Steel Framing Machine, C U Stud And Track Rolling Machine

1. Technical Parameter

main motor power: 7.5Kw

hydraulic cutting power: 4Kw

Material thickness: 0.3-1.5mm galvanized coils or black steel

profile width: about 20-100mm

rolling speed: 10-15m/min

roller stations: 10 stations

roller material: 45# steel, with quenching 60mm shaft

cutting blade material: Cr12

power supply: 380V, 50Hz, 3Phase

machine weight: about 2.5Tons

machine size: Length 3500mm* Width 500mm* Height 800mm

2. Working Flow

Uncoiler------Feeding with guide—Punching-----Roll forming——Cutting—Products collecting

3. Machine Components

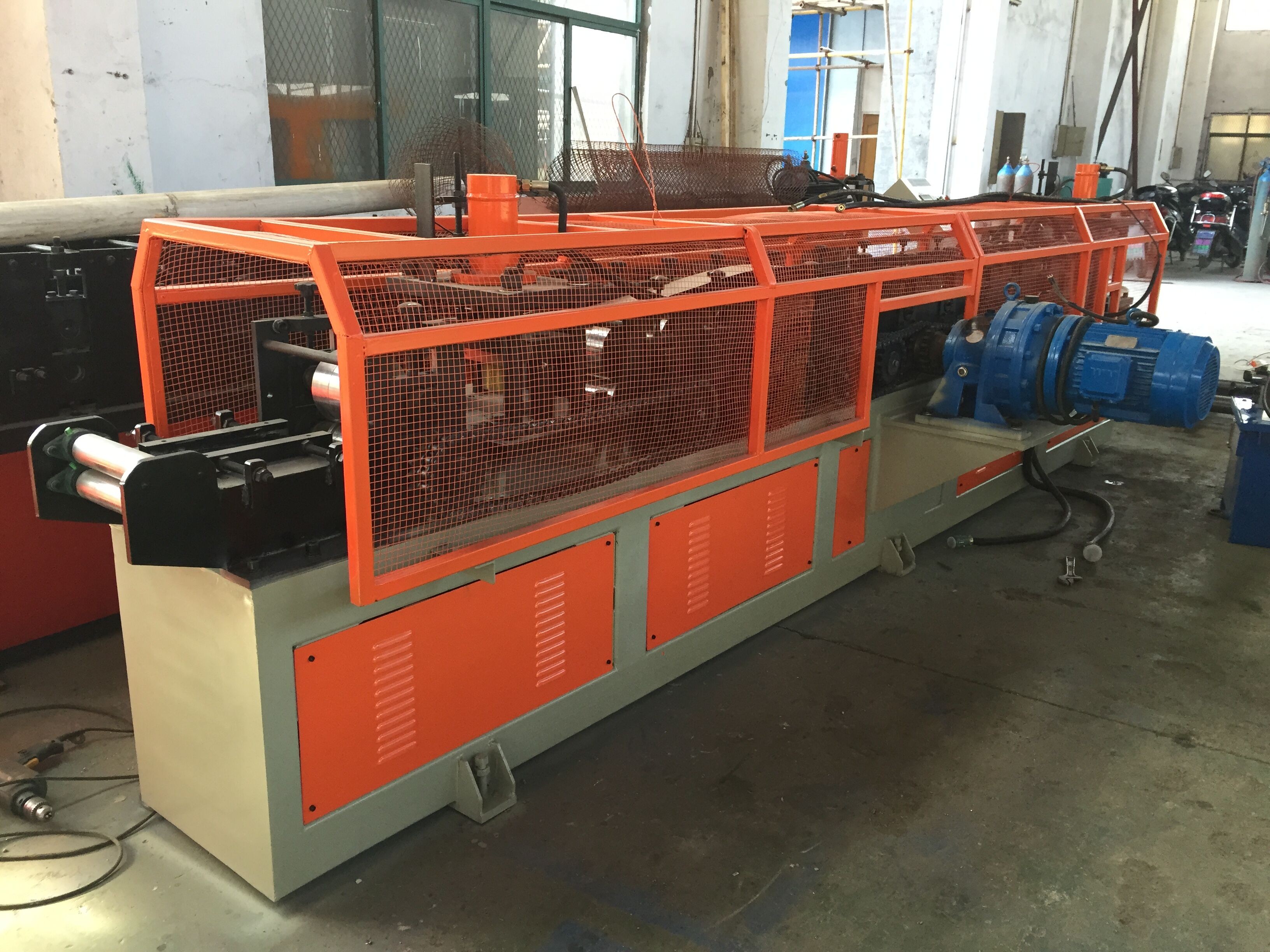

4. Machine Photo

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
