Solar Strut Roll Forming Machine

1. Technical Parameter

• Forming thickness: 1.5-2.5 mm,galvanized coils yield strength≤G250MPa
• working speed: 12M/min(not include cutting and punching stop time)
• Hydraulic punching device: 1 set
• Notching device: 1 set
• roller stations: about 13 stations
• material of roller: bearing steel, quenching treatment.
• material of main shaft: 45# fine steel,
• diameter of main axis: ￠75mm
• main motor power: 7.5kW
• motor power of hydraulic station: 5.5 KW
• hydraulic station pressure: 12MPa
• electric control system: whole line adopted PLC control, Panasonic PLC
• cutting type: hydraulic drive, cut after forming
• material of cutting blade: Cr12mov quenching process

2. Working Flow

Uncoiling—Feeding&Leveling--Punching Device---Roll forming—Cutting—Products collecting

3. Main Structure and Characters

4.Advantage for Roll Forming Machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Afrer-sales service

5. Profile of product

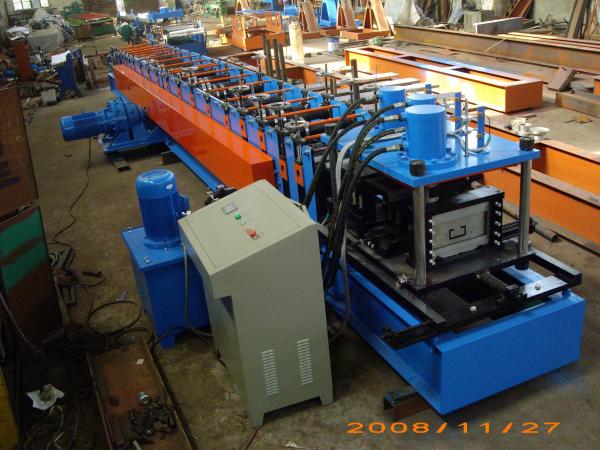

6. Machine Photo

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
