CE & ISO Certificate High Speed Steel Stud and Track Framing Roll Forming Machine

Machine Components

Technical Process

Decoiler- Punching- Feeding- Roll forming- Cutting- Run out table

Technical Parameter

1. roller stations: 13 stations

2. forming speed: 5-12m/min

3. material thcikness: 0.7-1.2mm

4. roller material: GCr15, HRC55-60

5. shaft diameter: 60mm

6. shaft material: 45# steel

7. main motor power: 7.5Kw

8. Hydraulic station: 4Kw

9. PLC: Panasonic

10. Machine size: 6000mmx 800mm x 900mm

11. machine weight: 3 tons

12. cutting blade material: Cr12Mov

13. drive way: 1 inch chain drive

14. Cutting: hydraulic cutting

Machine Photo

Profile

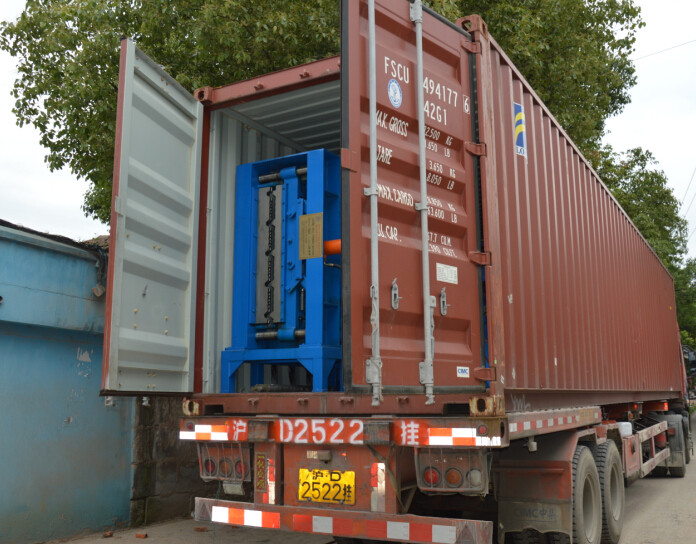

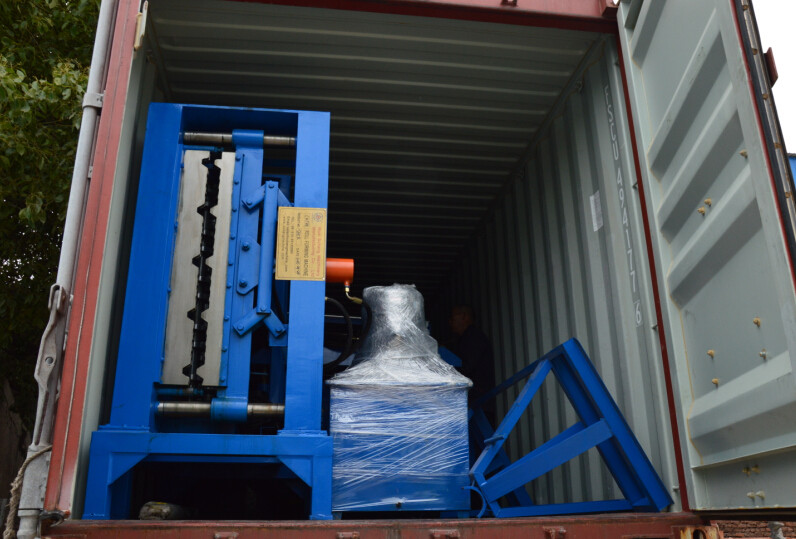

Package and Loading

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
