door frame roll forming machine
Technical Parameter
1.Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
2. Working Speed: 12-15 meters / min
3. Forming Steps: 18 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: gear box drive
7. Main Power with reducer:15KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
11. The whole machine is controlled by industry computer-PLC.
12 PLC--Siemens, Japan English and Chinese Language
13 Touch Screen-- Siemens Japan
14. Encoder--Omron, Japan
15 Electric parts--Schneider
16 Machine direction: from Right to Left
Main Components
Machine list |
5 ton passive de-coiler |
1 set |
Leveller |
1 set |
Punching |
4 sets |
Main roll forming machine |
1 set |
PLC Control box |
1 unit |
Hydraulic station |
1 unit |
Out table |
2 units |
Working Flow of Roll Forming Machine
Decoiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
Advantage for Roll Forming Machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Afrer-sales service

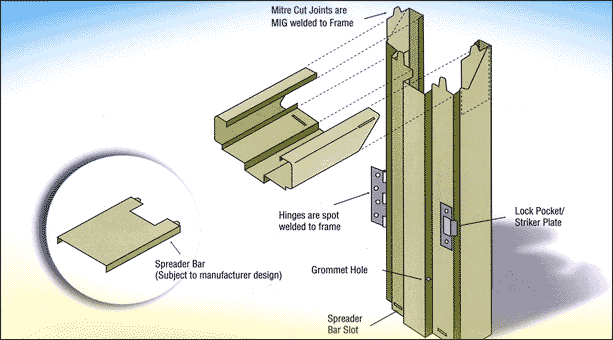

Profile of product
Photo Gallery
Loading pictures
Company Profile
Sussman Machinery (wuxi) Co., Ltd. is specialized in building
materials of light steel structure. Since the factory founded 10 years before, it always designs and
produces various type profile
of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish
panel line, pre-painted steel forming machine, Racking roll forming
machine, the cable tray roll forming machine, Glazed Tile forming
machine, Automatical C/Z Purlin forming machine, Floor Deck forming
machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit,
Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket,
Nursing homes, villas and other
construction projects, Our factory can meet the construction
enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
