Roof panel K-Span Roll Forming Machine
Technical Parameter
Item NO. |
Description |
Offered Specification |
1 |
Product Line speed |
10-13 m per min |
2 |
Suitable material thickness |
0.5--1.5 mm |
3 |
Raw material |
Pre-paint Color Steel Coil yield strength≤G250MPa |
4 |
Dimension | About 10400mm * 2250mm * 2300mm |
5 |
Levelling device |
7 roller levelling |
6 |
Roller stations(stages) |
16 stations
|
7 |
Roller material |
bearing steel, quenching treatment |
8 |
Shaft diameter |
Φ76mm ,material is 45# forge steel |
9 |
Transmission |
By chain 1.2 inch 20A double chain with longer shafts |
10 |
Material of chain |
45# forged steel with frequency quenching, 12A |
11 |
Material of cutting |
Cr12Mov with quench HRC58-62° |
12 |
Main motor power |
7.5kw |
13 |
Motor power of hydraulic station |
5.5kw |
14 |
Hydraulic station pressure |
12Mpa |
15 |
Machihne Weight |
10 Ton |
15 |
Tolerance |
6m+-1.5mm |
16 |
Frame |
H Beam |
Machine Component
Serial No. |
Commodity & Description |
Quantity |
1 |
5 ton manual De-coiler |
1 set |
2 |
Leveing guiding devide |
1 set |
3 |
Servo feeding device |
1 set |
4 |
Main roll forming machine |
1 set |
5 |
Hydraulic station |
1 set |
6 |
Cutting device |
1 set |
7 |
Finished products tabel |
1 set |
8 |
PLC control system |
2 sets |
9 |
Out tables |
1 set |
10 | Spare parts | 1 set |
Machine Description
The no girder arch roof roll forming machine is designed and built
to produce large span steel sheet for
roofing panel. It is comprised of mechnical expansion decoiler,
roll forming machine unit, hydraulic mould
cutting device, curving panel machine unit, PLC control system,
hydraulic system, run-out tables for
straight and curve panels and all other accessories. Customer can
choose mobile truck as foundation for
flexible use.
Main Fetures & Components of the Machine
1. The structure is simple and the appearance of the machine is
beautiful because we adopt the shape- steel structure and process
as a whole after welding, it has the ability of strong loading and
stable operation when running the machine.
2. All the components of the machine are from brand-famous
enterprise so that they ensure the machine normal function very
effectively.
3. We adopt the automatic length-fixed forming and cutting to
guarantee the length to be precise and the finished product clear
without deforming.
4. It's very easy to install the equipment and suitable for
producing in the factory.
5. The machine has features of low noise and high efficiency.
Standard Profile Drawing

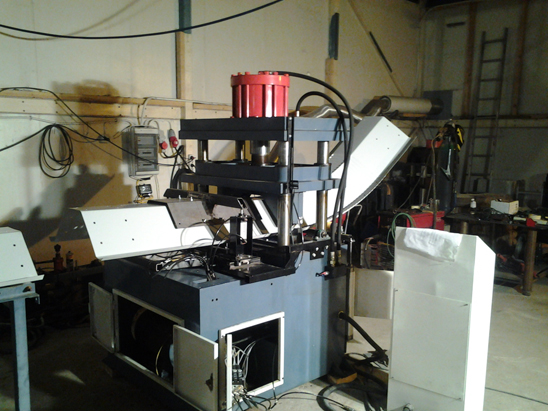

Forming Machine Picture
