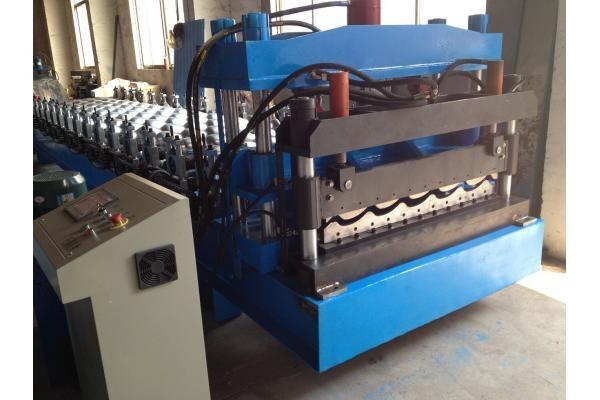

Metal roof panel roll forming machine



Technical Parameter


1.1 Rolling speed: UP to 15 m/min(not include cutting time)

1.2 Rolling thickness: 0.25-2.5mm

1.3 Raw material: Color painted coils

1.4 Dimension: About 8000×1600×1200(mm)

1.5 Effective width: 836mm

1.6 Feeding Coil width: 1000mm

1.7 Roller stations: About 18 stations

1.8 Roller material: 45#forge steel, coated with chrome

1.9 Shaft diameter: Φ76mm

1.10 Transmission: By chain 1.2 inch

1.11 Material of chain: 45# forged steel with frequency quenching, 12A

1.12 Material of cutting: Cr12Mov with quench HRC58-62°

1.13 Tolerance of cutting: 10m+-1.5mm

1.14 Hydraulic station: 4kw

Working Flow

A.Passive Decoiler

B.Servo Feeding Applicator

C.Hydraulic/Press Punching

D.Roll Forming Unit

E.Hydraulic Cutting

F.Output Table






Standard Drawing of Product


Company Profile

Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine. We export our machines to more than 80 countries for more than 15 years.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
