U shape carrying U track roll forming machine is to prudece the U type suspended material to for the steel structure roofing.If ceiling participation needs big loading ability or a large area building of the ceiling, U shape keel as the carrying keel is necessary. When installation, first U type bearing keel and then install (main keel) hanger which will be U-shaped main keel and the boom of connection, and then T bar participation.ust talking from ceiling partition, U shape keel is used widely. Same it also could be used as the bearing keel in drywall building.
The U shape carrying U track roll forming machine can be customized made aoccroding to speed, and whether the customer need the combined roll forming machine. Because the U track is used along with C stud and L wall protetor conrner bead, so the machine can be designed with one machine two molds, and one machine with two production lines.
According to the usage of the U track, the sizes will be different. So our U track roll forming machine could be used to make various sizes too by adjusting the spacer or fully automatic. Here are some drawing profiles for your reference:

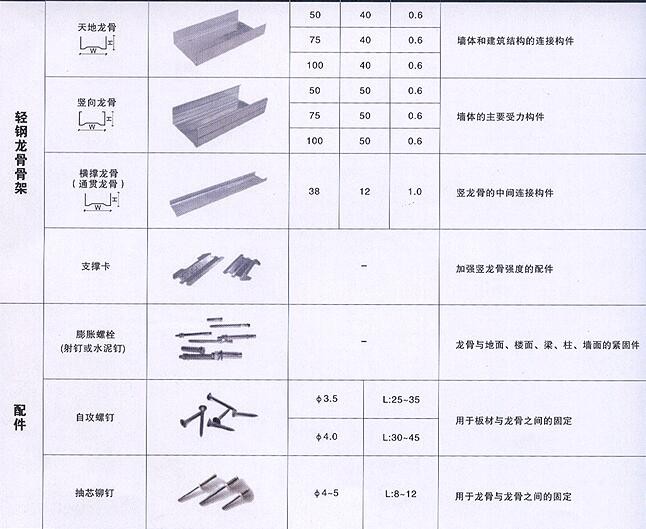

The U track roll forming machine is composed by the following elements: Decoiler, leveling beach, main roll forming machine, shearing system, PLC control system, hydraulic station and run out table.
1.For the Decoiler, you can choose manual Decoiler, motor Decoiler and hydraulic Decoiler.
2.For the leveling beach, we use 7 rollers three up and four down.
3.For the main roll forming machine:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission (the first and the last roller, the down roller should be attached with the upper one with the gear drive.), roller surfaces polishing, hard plating, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 2900 800 1400
Weight of main part: 3 tons
Voltage: 380V/50HZ3Phase (as customer's request)
Roller fixer: Guide column
Frame: middle plate welded
Memorial arch frame type
Frame thickness: 25mm
Drive mode: gear
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ40mm
Number of rollers: 8 rollers
Main power: 3kw
Cyclical planetary gear speed reducer)

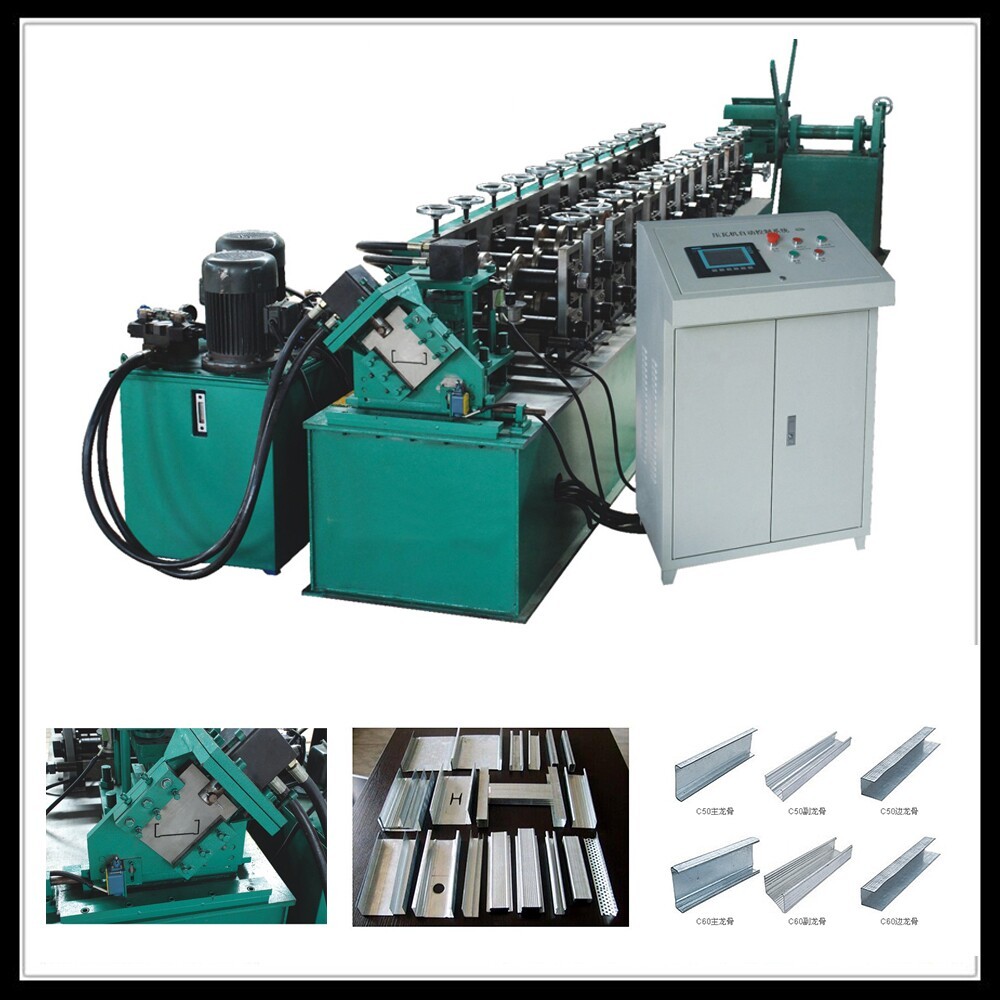

please refer to below main body roll forming machine system:

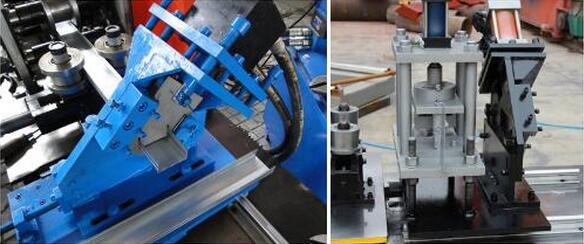

U track machine hydraulic cutting system:
Feature: Ensure stability, precision and cutting speed can be adjustable.
Function: Automatic cutting controlled by PLC, PLC brand is Taiwan Taida, also can set with other brands.
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Gcr12 quenched
Power supply: hydraulic power
Frame: Pillar style with rack & pinion system
Stroke switch: non-contact photoelectric switch
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
