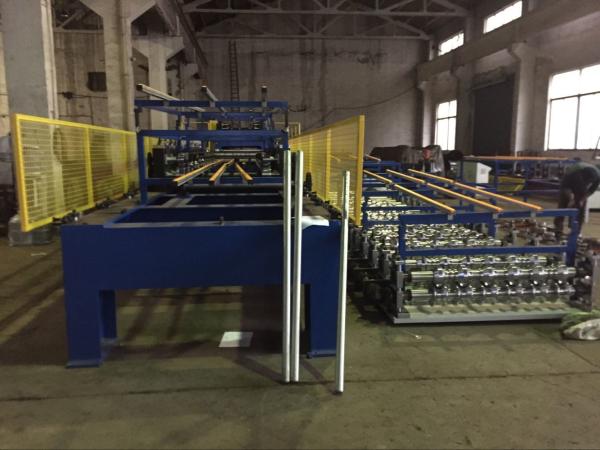

High Speed 3-8m/min 950mm Width Discontinuous PU Sandwich Panel
Production Line with Ce Certification
Discontinuous PU Sandwich Panel
Discontinuous PU Sandwich Panel Production Line is a good choice
with
Economy investment, flexible size panel, high qualty
1.Machine is to make the sandwich panel with the color steel sheet
or
galvanized sheet and the core of polyurethane discontinuously.
2.The multi-layered laminator is consisted of the press and the
rail stands.
Two worktables move into the press and the other two stay on rail
stands.
Initially, put the top and the bottom sheets inside of mould frames
and then
seal, after that, feed the worktables into the press. When
worktables inside
the press moves out orderly, the other two feed in at the same
time. Upon
the finish of feeding, the press will close and slant at a angle,
waiting for
injecting PU raw materials from the PU mixing head into different
panels.
Meanwhile materials start foaming and curing. At this time, mould
frames
on worktables moved out for taking out the finished products, then
to be
ready for next production cycle.
3.The main laminator 2+2 produces PU sandwich panel with fixed
length
such as 6m, 9m, 12m, adjustable width less than 1.2m, different
thickness
from 50mm to 250mm by the closed molding frame
| Item | Unit | Parameters |
| Panel Material | Types | | Pre-painted steel; Aluminum; Platinum |
| Hardness | MPa | ≤350 |
| Thickness | mm | 0.4-0.8 |
| Coil width | mm | ≤1250 |
| Coil ID | mm | 500.6 |
| Coil Weight | T | 5.8.10 |
| Foam Material | | EPS Polyurethane |
| Length of Sandwich Panel: | mm | ≤1050 |
| Width of Sandwich Panel: | mm | ≤200 |
| Speed of Output | m/min | 3-8m/min |
| Pressure of Foam Injection | bar | 150-200 |
Advantage for PU Ceiling
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Profiles of PU Ceiling
Company Introduction
Sussman Machinery manufacturing Co., Ltd. is a comprehensive
enterprise integrating production, sales and services. We are
mainly engaged in providing machineries and equipment. Owing to a
professional teamwork, we are experienced in manufacturing, import
and export, customers' design, installation and test, technical
solution and after-sale services. We have shipped out our machines
to more than 50 countries, and keep good business relationships
with a large amount of worthy customers, contributing to our great
business records and reputation.
Our service
1. Installation and training:
1). If buyers visit our factory and check the machine, we will show
you sample running machine
plant, talk all the details face to face, also can design the
machine line according your detial request.
2). Our engineers are available for over -seas, technical supported
until the workers know how to
operate the eps sandwich wall panel production line.
2. After Service
1). One year guarantee for whole machine.
2). 24 hours technical support by email or calling.
3). If there is any problem found of the machine, we will repair it
for free in one year.
