Downspout pipe roll forming machine
1.Technical Parameter
Item NO. |
Description |
Offered Specification |
1.0 | Roll forming machine | |
1.1 | Rolling speed | 10-15m/min(not include cutting time) |
1.2 | Rolling thickness | 0.3-0.6mm |
1.3 | Raw material | Galvanized steel sheet |
1.4 | dimension | 3500×1600×1500(mm) |
1.5 | Effective width | 60mm |
| 1.6 | Roller stations | 13 stations One stage for embossing
|
1.7 | Roller material | 45#forge steel, coated with chrome |
1.8 | Shaft diameter | Φ70mm ,material is 45# forge steel |
1.9 | Transmission | By chain 1 inch |
1.10 | Material of chain | 45# forged steel with frequency quenching, 12A |
1.11 | Material of cutting | Cr12Mov with quench HRC58-62° |
1.12 | Tolerance | 6m+-1.5mm |
1.13 | Frame | H type steel |
2.Main Components
Serial No. |
Commodity & Description |
Quantity |
1 | 3T manual uncoiler | 1 set |
2 | Infeed guiding | 1 set |
3 | Main roll forming machine | 1 set |
4 | straighten device | 1 set |
5 | Hydraulic cutting equipment | 1 set |
6 | Output table | 1 set |
7 | Main drive | 1 set |
8 | Hydraulic system | 1 set |
9 | Controlling system (including cabinet) | 1 set |
10 | Downpipe elbow forming machine | 1 set |
11 | seaming machine | 1 set |
|
3.Working Flow of Roll Forming Machine
De-coiler—→Level device —→Main roll forming machine—→Hydraulic
cutting—→ Run out table
4. Advantage for Roll Forming Machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Afrer-sales service

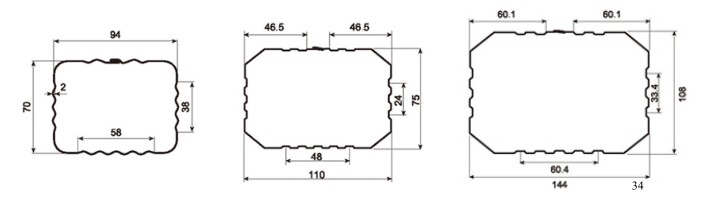

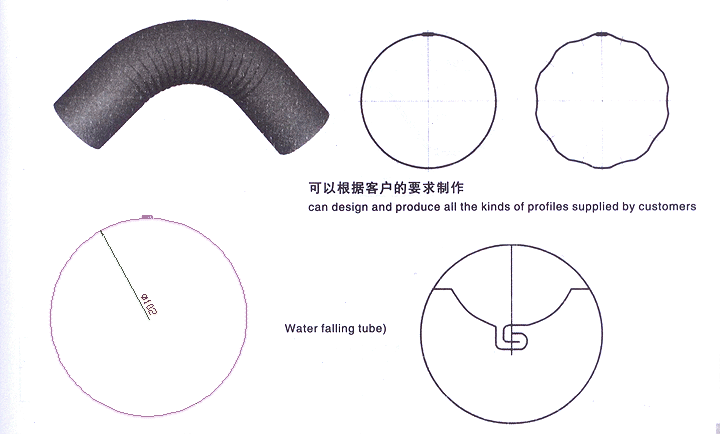

5.Profile of product

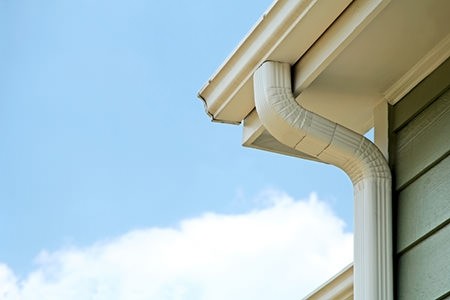

6.Photo Gallery
7. Loading picture
8. Company Profile
Sussman Machinery (wuxi) Co., Ltd. is specialized in building
materials of light steel structure. Since the factory founded 10
years before, it always designs and produces various type profile
of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish
panel line, pre-painted steel forming machine, Racking roll forming
machine, the cable tray roll forming machine, Glazed Tile forming
machine, Automatical C/Z Purlin forming machine, Floor Deck forming
machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit,
Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket,
Nursing homes, villas and other
construction projects, Our factory can meet the construction
enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
