7.Kw Hydraulic Power C Z Purlin Roll Forming Machine 3.5 Ton Passive Decoiler

Technical Parameter

1. Steel Sheet Thickness: 1.-3.0mm (depend on requirement )

2. Hydraulic power: 7.Kw

3. Transmission way: double chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 3 ton passive decoiler

6. Forming Speed: 10-20m/min

7. Roller Groups: about18 stations main roller

8. Roller Material: GCr15 grade steel

9. Roller Diameter: 180mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 11 Kw

Main Components

1. 3 ton passive decoiler-------------------------------- 1Set

2. Main roll forming machine---------------------------- 1Set

2. Hydraulic station----------------------------------------- 1Set

3. Cutting device-------------------------------------------- 1Set

4. Finished products tabel--------------------------------- 2Set

5. PLC control system-------------------------------------- 1Set

6. Spare parts------------------------------------------------ 1Set

Working Flow

Decoiler ---- Feeding --- Levelling--- Punching --- Cutting ---Roll forming--- Run out table

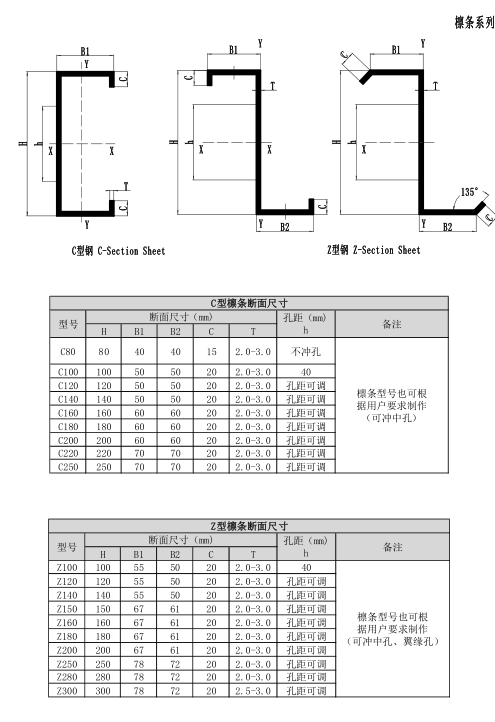

Profiles of CZ Purlin Interchangeable Roll Forming Machine

Machine pictures

Loading Pics

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
