    ISO Standard Stud And Track Roll Forming Machine / Roll Form Machine Φ52mm Roller

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF
    Certification : CE ISO
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10set/month
    Delivery Time : 45-60days
    • Product Details
    • Company Profile

    ISO Standard Stud And Track Roll Forming Machine / Roll Form Machine Φ52mm Roller

    1-2mm Metal CE&ISO Standard Stud And Track Roll Forming Machine 7.5Kw


    Parameters


    ItemsSpecificationsRemarks
    Material of coilMaterial Thickness0.6-1.0 mm galvanized
    De-coilerWeight3 ton manual
    Forming systemRolling Speed10-12 m/min
    Roller StationsAbout 13 stations forming
    Roller MaterialGcr15 Steel with quenching
    Shaft Material

    45# Steel Diameter 75mm shaft


    Maim Motor Power5.5 kw
    Hydraulic cutting Power3 kw

    Cutting

    system

    Material Of CuttingCR12 with quench treatment
    HardnessHRC58-62
    Tolerance+-1.5mm
    Cutting blade1 set of cutting blade
    Electrical control systemElectric Source

    220V, 60HZ,3 phase


    Control SystemPLC with touch screen Japanese Panasonic and Yaskawa Brand
    WeightAbout 3.5 tons
    Way Of Drive1 inch single chain
    Size of machineLength 6500mm* Width 600mm* Height 800m

    Technological process


    Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting

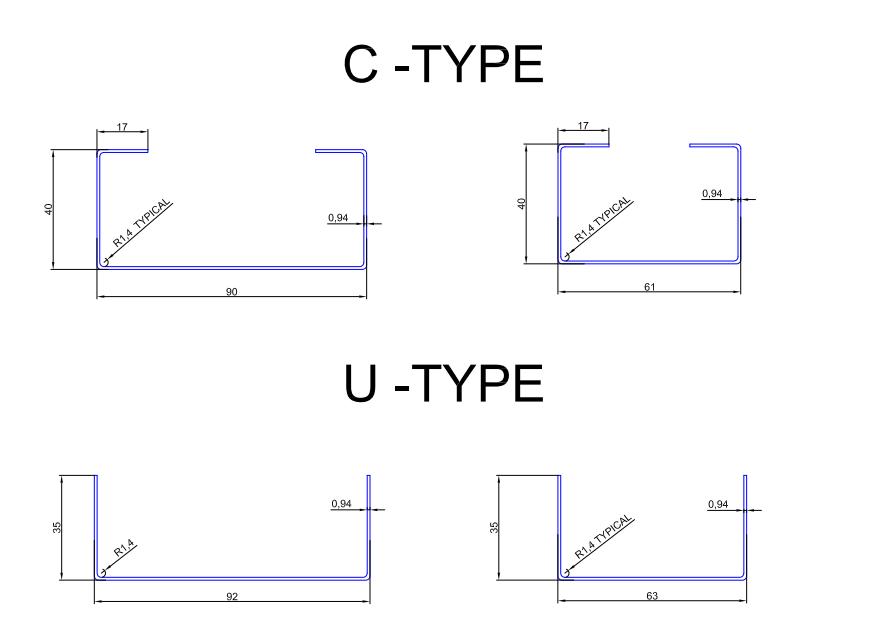

    Profile



    Stud and track is made in one machine size by spacers and toolings



    Main Channel Roll forming machine



    Machine Configurations


    1.Hydraulic Uncoiler

    2.Feeding Device

    3.Straightening

    4.Roll Forming Machine

    5.Punching

    6.Cutting

    7.PLC Control System


    FAQ

    Q: What's your delivery Time:
    within 45-60 days after receiving prepaid. Some machines in stock, can be delivered at any time.

    Q: What's your payment terms:
    30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

    Q:What's your Install and Training:
    If buyers come to our factory to inspect, the training to install and operate is provided face to face.
    If not, manual and video is provided to show how to install and oper
