Material 1mm Galvanized Coils or Black Steel Top Hat Stud Roll Forming Machine Chain Transmission

None stop to punch and cut!

Profile width can be adjusted within the range!

Production speed: 40m/ min!

Full automatic!

Technical Parameter

Material thickness: 1mm galvanized coils or black steel

profile width: about 22mm

profile height: about 5.5mm

rolling speed: 10-15m/min

roller stations: 10 stations

roller material: 45# steel, with quenching 60mm shaft

main motor power: 3Kw

hydraulic cutting power: 3Kw

cutting blade material: Cr12

power supply: 380V, 50Hz, 3Phase

machine weight: about 2.5Tons

machine size: Length 3500mm* Width 500mm* Height 800mm

Working Flow

Feeding with guide—Rollforming——Cutting—Products collecting

Machine Components

Profile Drawing

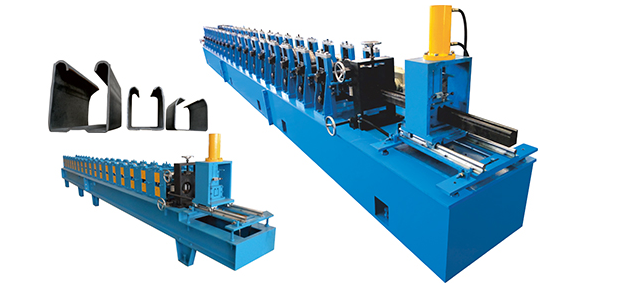

Machine Photo

FAQ

FAQ

1) Q:What is the Warranty Machine ?

A1: For the roll forming machine , we have 1 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

2) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

3) Q: How does your factory do regarding quality control?
A: Quality is priority. LMS People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

4) Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
