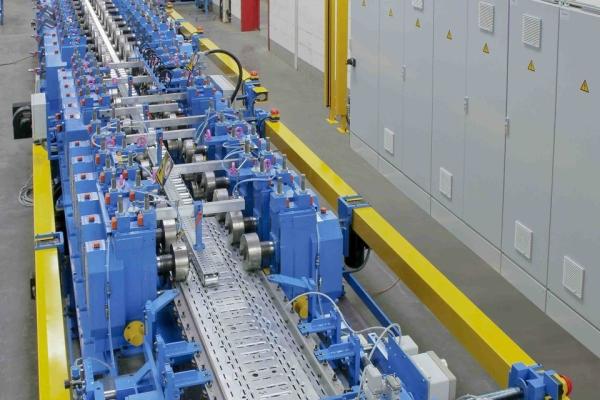

Cable tray roll forming machine

Technical Parameter

1. material width: 50-500mm

2. material thickness: 0.5mm-2.8mm

3. uncoiler: 3 tons manual

4. rolling speed: up to 4m/min

5. roller stations: about 22 stations

6. roller material: GCr15 quench treatment

7. main motor power : 22Kw

8. cutting material: Cr15 with quench treatment

9. hydraulic cutting power: 5Kw

10. power supply: 380V, 50Hz, 3 Phase

11. control system: PLC Panasonic

Machine Component List

Working Flow of Roll Forming Machine

Uncoiler—Feeding—Leveling—Punching&Cutting—Roll forming—Output table

Cable Tray Profile Drawings

Customer Visiting

Company Profile

Suhang Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.

Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
