8 - 12 M / Min Downpipe Roll Forming Machine 7500KG 380V Glazed Steel Material

Ask Lasest Price
Brand Name :	Sussman
Model Number :	RF-DM
Certification :	CE ISO
Price :	negotiable
Supply Ability :	10 SETS PER MONTH
Delivery Time :	60DAYS

Add to Cart

Product Details
Company Profile

8 - 12 M / Min Downpipe Roll Forming Machine 7500KG 380V Glazed Steel Material

Most Popular Downspouts Roll Forming Machine, making machinery

Most Popular Downspouts Roll Forming Machine, making machinery
material	coating rolled steel, etc
thickness	0.4-1mm

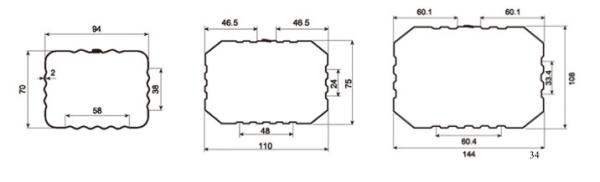

Forming specifications	depending on specific requirements of customers
Forming speed	10-15m/min
Main motor power	5.5-7.5 kw
Cutting mode	pneumatic flying saw tracking cutting
Rolling material	45# steel
Diameter of the roller	Φ80mm
Control system	PLC systems from Mitsubishi and Panasonic products
Optional accessories	hydraulic uncoiler

Main Features

1) DC driving for slitting and recoiling
2) PLC automatic controlling, VF speed adjusting
3) High quality alloy blade for precision working
4) International famous brand Electrical and Pneumatic elements

5) Reliable precision with high working speed.

Detailed Images

1000/1250mmx10 ton hydraulic recoiler
Deceleration motor	7.5kw-4 c380v-50H)
Motor for hydraulic station	4kw
Hydraulic pressure	16Mpa
Coil I.D. Min	470mm
Coil O.D. Max	1300mm
Coil width Max	1250mm
Total weight	approx 4 tons
Frequency converter	7.5kw

PLC control cabient
Control system	Panasonic PLC touch
Speed adjuster	YASKAWA Frequency Converter,Japan
Length controller	Encoder (OMROM brand)
Button switch	Schneider brand
Cable connection	aviation plug,easy for connection
Control system power	overload protection
Dimension	700mm x 1000mm x 300mm

Hydraulic station
Hydraulic power	5.5kw
Working pressure	12-16Mp adjustable
Solenoid valve	2 groups
Hydraulic oil	46# hydraulic oil
Quantity	1

8 - 12 M / Min Downpipe Roll Forming Machine 7500KG 380V Glazed Steel Material

Feeding
Feeding type	adjustable
Feeding width range	about 1300mm
Entrance and guide roller	diameter is ￠76mm, material is SAE1045, HRC48-52° surface with chrome
Quantity	1

Forming Section
Main motor power	7.5kw, AC motor, motor inside of main machine
Thickness range	0.3-0.8mm
Transmission	by chains , Model:1inch
Machine Voltage, Frequency, Phase	380 V, 50 Hz, 3Phase
Machine roll forming speed	0-15m/min
Shaft diameter	￠56mm material: SAE1045

Post cutting system
Material of blade	Cr12, 58-62 HRC hardness
Cutting power	hydraulic, 5.5KW
Working pressure	12Mpa adjustable
Length measuring	Automatic encoder length measuring
brand	Omron
Tolerance of length	+/- 1.5mm for each piece end product
The cutting sequence is also contained and controlled by the same PLC program

Down pipe elbow machine
control system	Strong electrical current
main motor power	2.2kw
max bend angle	90°
function	bend and fasten at the same time
dimension of the machine	1300 mm×650 mm×1500 mm
speed of bend	0-5m/ min

Quality Control

1. We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.

Warranty

1). One year, and we will provide the technical support for the whole life.

2).Training: the buyer should charge of visa, return ticket, food and accommodation

overseas and USD50/person/day for salary.

3). Need one technicians

4).Training time: one week (contains the time of installation and adjustment

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
