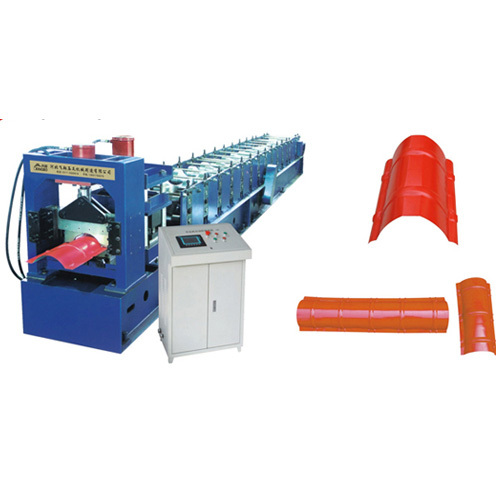

    3T 4KW Ridge Cap Roll Forming Machine Hydraulic Cutting PLC Touch Screen Control

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF
    Certification : CE ISO
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60days
    • Product Details
    • Company Profile

    3T 4KW Ridge Cap Roll Forming Machine Hydraulic Cutting PLC Touch Screen Control

    Product Description

    Suitable to processColor steel plate
    Width of the plate400mm
    Thickness of the plate0.3-0.8mm
    De-coilerManual one, can load 5 tons raw material
    Rollers for forming10 rows
    Diameter of the roller70mm
    Rolling materialCarbon Steel 45#
    Main motor power3kw
    Processing precisionWithin 1.00mm
    Control systemDelta PLC control
    Side panel of machine14mm
    Main structure of the machine300 H steel
    WeightAbout 2.8T
    Dimensions5.6*1.0*1.5m
    Voltage380V 50Hz 3phases(changeable as needs)
    CertificateCE/ISO

    Working processing:

    2016 yufa roofing ridge cap roll forming machine/ metal ridge cap press machine

    Decoiler—Roll Forming Machine——Control System——Hydraulic cutter--------Receiving table

    RAW MATERIAL: GI

    Machine Type:ridge cap roll forming machine


    4.Main Parameters:

    NO.TypeSpecificationRemarks

    1.


    Raw material

    TypeGI
    Thickness0.8-1.2mm
    Yield strength235Mpa TO 350Mpa

    2.


    Decoiler

    OperationManual
    Weight apacity6tons

    3.


    Main body

    Roller station12stations
    Diameter of shaft75mm
    Material of rollers45# steel with chrome 0.05mm
    Material of shaft45# steel with chrome 0.05mm
    Frame350mm H-Beam
    Chain1.5 inches

    4.


    Cutter

    OperateAutomatic hydraulic type
    Blade MaterialCG12
    NumberOne hydraulic cutter

    5.


    Power

    Pump motor for cutter5.5kw
    Main motor15kw
    Voltage380V 50HZ

    6.


    Control

    system

    Electric Box

    PLC control system, Inverter,

    encoder

    LanguageEnglish
    9.Speed8-12m/min


    .Some details of the machine

    2016 yufa roofing ridge cap roll forming machine/ metal ridge cap press machine

    ridge capping roll forming machine,ridge cap/ridge sheet /corrugated sheetridge capping roll forming machine,ridge cap/ridge sheet /corrugated sheetridge capping roll forming machine,ridge cap/ridge sheet /corrugated sheet

    Packaging & Shipping

    Packaging Detail of ridge profile machine:

    1. One 20ft container for loading one set machine with manual decoiler;
    2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
    3. Spare parts and some small parts packed in plastic tooling box;
    4. All Components Fixed by steel wire with Container.


    Our Services

    1. Installation and training:
    a.If buyers visit our factory and check the machine, we will teach you how to install and use

    the machine, and also train your workers/technician face to face.
    b.Without visiting, we will send you user manual and video to teach you to install and operate.
    c.If buyer needs our technician to go to your local factory, please arrange board and lodging

    and other necessary things.

    2. After Service

    a.One year guarantee for whole machine.

    b.24 hours technical support by email or calling

    c.If there is any problem found of the machine, we will repair it for free in one year.
