Downspout pipe roll forming machine
1.Technical Parameter
Item NO. |
Description |
Offered Specification |
1.0 | Roll forming machine | |
1.1 | Rolling speed | 10-15m/min(not include cutting time) |
1.2 | Rolling thickness | 0.3--2.0mm |
1.3 | Raw material | Galvanized steel sheet |
1.4 | dimension | 3500×1600×1500(mm) |
1.5 | Effective width | 60mm |
1.6 | Roller stations | 20 stations One stage for embossing
|
1.7 | Roller material | 45#forge steel, coated with chrome |
1.8 | Shaft diameter | Φ70mm ,material is 45# forge steel |
1.9 | Transmission | By chain 1 inch |
1.10 | Material of chain | 45# forged steel with frequency quenching, 12A |
1.11 | Material of cutting | Cr12Mov with quench HRC58-62° |
1.12 | Tolerance of cutting | 6m+-0.5mm |
1.13 |
Frame |
H type steel |
2.Main Components
| 3 tons manual de-coiler | 1 set |
| Infeed guiding | 1 set |
| Main roll forming machine | 1 set |
| Straighten device | 1 set |
| Hydraulic cutting equipment | 1 set |
| Output table | 2 sets |
| Main drive | 1 set |
| Hydraulic system | 1 set |
| Controlling system (including cabinet) | 1 set |
| Downpipe elbow forming machine | 1 set |
| seaming machine | 1 set |
3.Working Flow of Roll Forming Machine
A. Passive Decoiler
B. Servo Feeding Applicator
C. Hydraulic/Press Punching
D. Roll Forming Unit
E. Hydraulic Cutting
F. Output Table
4. Standard profile of product

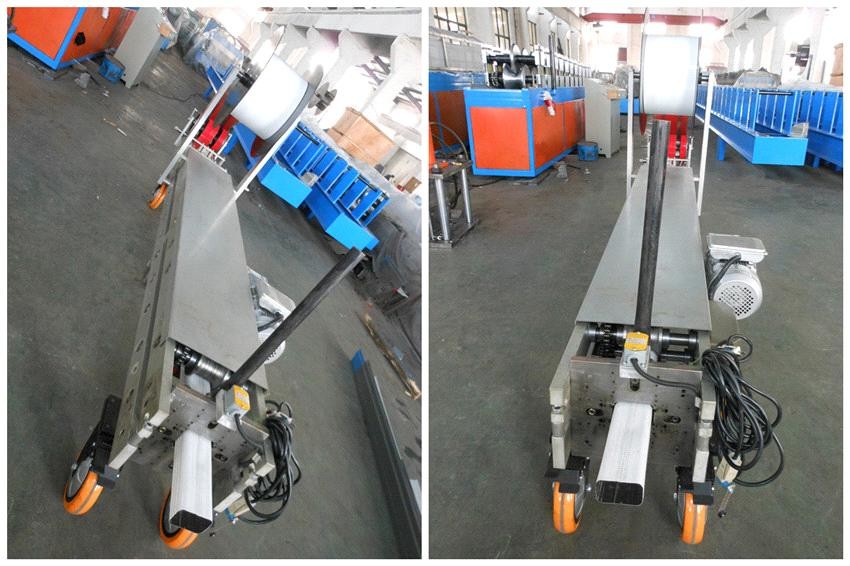

5. Photo Gallery
6.Company Profile
Sussman Machinery (wuxi) Co., Ltd. is specialized in building
materials of light steel structure. Since the factory founded 10
years before, it always designs and produces various type profile
of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish
panel line, pre-painted steel forming machine, Racking roll forming
machine, the cable tray roll forming machine, Glazed Tile forming
machine, Automatical C/Z Purlin forming machine, Floor Deck forming
machine, Guardrail forming machine, Down Pipe forming machine, the
whole carriage plate for car beam unit, Steel storage unit, etc.
The products are widely used in warehouse, factory buildings,
supermarket, Nursing homes, villas and other construction projects,
Our factory can meet the construction enterprises, automobile
industry, Iron and steel production enterprises' growing demands.
Sussman machinery is located in Wuxi city, Jiangsu province which
is close to Shanghai, It's about half an hour's journey. We enojoy
the convenient transportation and advantageous location which
supply good business opportunities for the buyers home and abroad.
7.Transportation
All goods will be shipped to your country, containers number will
be decided with how many machines would you choose
8.Installation of the machine
The individual components of the machine are installed according to
the layout and prepared for the commissioning.
The installation comprises of:
- Installation by Sussman service technicians.
- The following services are included:
- Installation of the machine components.
- Adjustment of the machine components.
- Connection of all motors to the control cabinet.
- Installation of the required safety devices.
Delivery extent does not comprise of:
- Media supply (electrics, compressed air, etc.)to the
machine(control cabinet)
- Raw material,process material and fuels
- Raw material for test blocks
- Transport and lifting devices
- Auxiliary staff.
The operators of the plant should be present during the
installation in order to become familiar with the new machines.
9.Commissioning of the machine
The components of the machine are commissioned one after the other.
At the end of the commissioning the machine is ready for production
and is handed over.
The commissioning comprises:
- Commissioning by Sussman service technicians
- Training at the machine
- The following services are rendered
- Run up of the machine components
- Testing of all functions of the machine components
- Start of a fully automatic molding process
- Execution of machine acceptance
Delivery extent does not comprise of:
- Raw materials, process materials and consumables
- Raw material for test blocks
- Transport and lifting devices
The operators of the plant should be present during the
commissioning in order to become familiar with the new machines．
10.Our After-Sales Service Commitments
Sussman hereby solemnly promises: We implement the “three
guarantees” service policy for any equipment sold by Sussman,
provide free of charge installation guidelines, commissioning and
maintenance of the equipment, training of the Buyer’s relevant
Operators; and provide technical requirements for the installation
and operation of the equipment, technical layout diagrams and other
related information, provide a lifetime supply of maintenance and
spare parts
The detailed measures are as follows:
1.Guidelines for installation and commissioning of equipment:
Based on the actual situation, to assist and guide the Buyer and
Buyer’s technical personnel in the overall installation location,
the installation of equipment, and provide Buyer with answers to
their questions and related issues;
2.Provide training for operation and maintenance personnel:
Based on the Buyer’s request, Sussman will provide free of charge
training of the operation and maintenance personnel;
a) The User (Buyer) can send their operation and maintenance
personnel to our factory for learning and training;
b) When Sussman is doing the installation and test running of the
equipment for the Buyer, the Buyer can send their personnel to
participate.
3.If failure occurs in any of the machines during the “three
guarantees” period(one year), then, upon the Buyer’s request,
Sussman will eliminate the failure;
4. Sussman will inform all its Buyers about any upgrades and
significant product improvements. Sussman will provide equipment
modifications based on their costs. Sussman will provide Buyers
with high-quality after-sales services in a careful and responsible
attitude, provide very strong guarantee for the Buyer’s normal
production.
We provide quick and satisfactory customer service, and promise to
respond within 24 hours after receiving your complaints by phone or
email
11.Quality Control
1.We strictly control the quality of raw materials and we can offer
inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological
processes. Besides, we carry out sampling inspection for our
products.
3. All of our workers have received relevant quality management
training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply
high quality machine and good service with reasonable price. We
sincerely hope to cooperate with worldwide customers for mutual
success.
12.FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are
optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas
services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control
complies with ISO9001. Every machine has to past testing running
before it's packed for shipment.
5) How can I trust you that machines pasted testing running before
shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our
factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
