220mmWidth Profile Width Roll Forming Machinery For Door Frame 2mm Thickness Galvanized Steel

Machine Componnets

Working Flow

De-coiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table

Profile drawing

Parameters

1.Materials to form door frame: According to the customers’ requirement1.5-2.0mm steel

2,Work speed: 3-10m/min

3,Forming steps: About 18 steps

4,Material of rollers: GCr15 steel, precision-machined, high frequency quenching HRC58-62,

5,Material of main shaft : 45# high quality steel

6,Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13

7,Main motor power: 7.5KW

8,Cutting : Hydraulic cutting, 4kw; quenching HRC58-62, with 3 cut dies ( you must change the bushing blocks when you want to manufacture another door frame.

9,Electronic control: PLC control

10,Dimension of main machine: About 8000mmX800mmX800mm

11,Weight: About 5T

12,Drive system: Chain drive

13,total power: 10.5kw

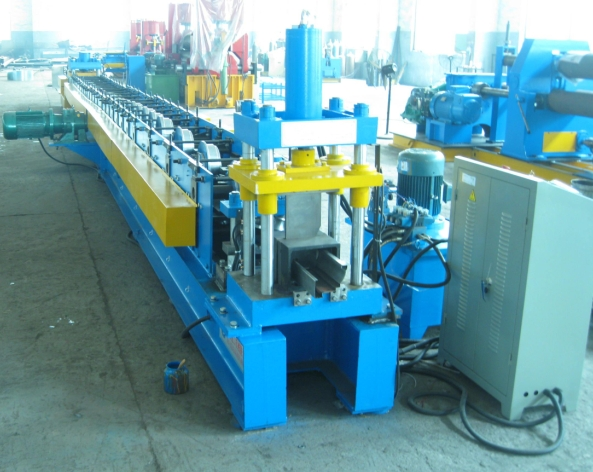

Machine pictures

Why choose us

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
