SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin

    Buy cheap SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin from wholesalers

    Buy cheap SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin from wholesalers
    • Buy cheap SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin from wholesalers

    SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SS-CZPI
    Certification : CCC, SGS, ISO9001, CE
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10 sets per month
    Delivery Time : 55 - 65 days
    • Product Details
    • Company Profile

    SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin

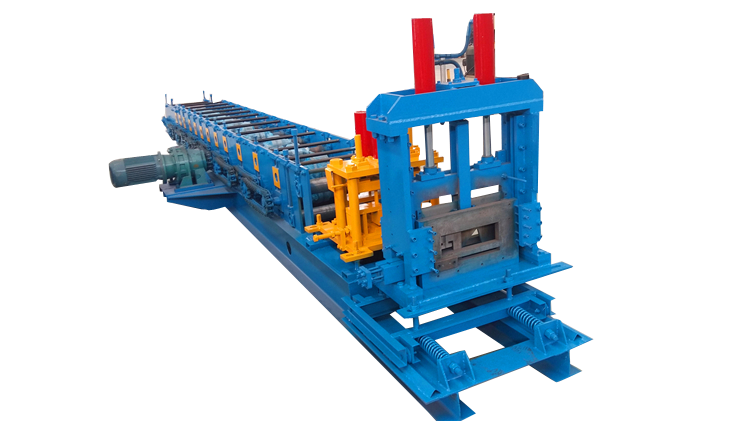

    CZ Purlin Channel Roll Forming Machine


    CZ Purlin Channel Roll Forming Machine


    Technical parameters

    Machine Sizes9500mm*1700mm*1500mm
    Main motor power11 KW
    Hydraulic station power5.5 KW
    Thickness1.5-3mm
    Material expand width300mm
    Material of rollerCGr15
    Diameter of principal axis80mm
    Processing speed0-15/min

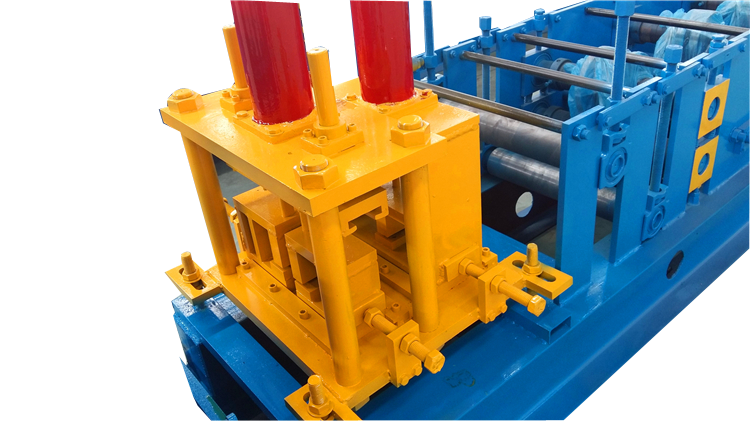

    Material of cuttingCr12
    Roller station13-15 Rows

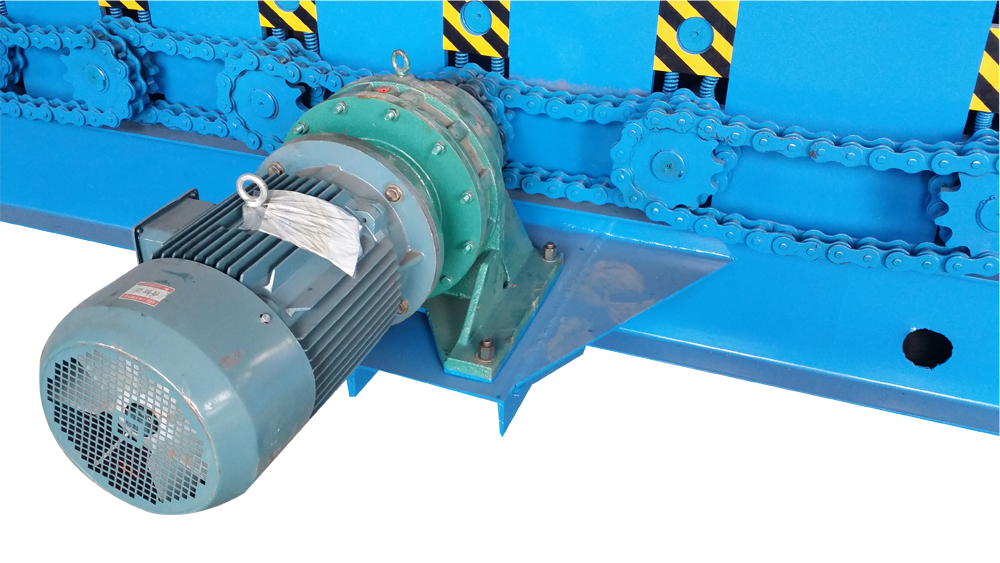

    Kind of driveChain Wheel, Chain
    AutomaticComputer: Mitsubishi PLC System
    Transducer: SAJ
    Switch: CHNT
    Warranty Period12 Months
    Our company have the series of coloured steel forming machine, including molding machine, concealed roof sheet machine, flat sheet bending machine and so on.

    SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin

    Product Show

    SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin

    SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin

    SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin

    SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin

    SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin


    Flow Chart

    SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin


    CZ Purlin Channel Roll Forming Machine

    SGS CZ Purlin Roll Forming Machine 16 - 18 Stations Roll Forming Machine For Purlin






    CZ Purlin Channel Roll Forming Machine


    Q1. What's your delivery time?
    A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.

    Q2. Do you have after-sales support?
    A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.


    Q3. Do you sell only standard machines?
    A3:No, most of our machines are built according to customers specifications,using top brand components.

    Q4. What will you do if the machine is broken?
    A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.


    Q5. Can you be responsible for transport?
    A5:Yes,please tell me the destination port or address.we have rich experience in transporting.
