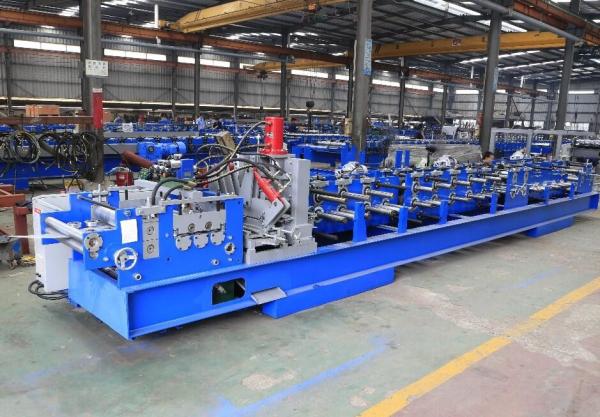

    Light Gauge Steel Frame CZ Purlin Roll Forming Machine Cee Zee Roof Purlin Roll Former

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-CP
    Certification : SGS.CE.ISO
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P
    Supply Ability : 10 sets per month
    Delivery Time : 75 days
    • Product Details
    • Company Profile

    Light Gauge Steel Frame CZ Purlin Roll Forming Machine Cee Zee Roof Purlin Roll Former

    Metal Building Steel Frame Roll Forming Machine C Section Purlin Forming Machine

    Specification

    1. European quality, work smoothly
    2. Low loss, easy operate
    3. High Efficency


    C Purlin Technical Parameter

    • Products specification: C80-300. thickness: 1.5-3.0mm. Yield strength: 250Mpa max.
    • Running speed: 0-12m/min.
    • Main shaft material: 45# steel, Q&T treatment
    • Main axis diameter: ¢75mm
    • Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish. Rigidity:HRC58-62.
    • Roller groups: 15 groups main rollers
    • Levelling roller: 7 rollers levelling device
    • Main motor power: 11KW;
    • Hydraulic station motor power: 5.5KW
    • Punching station: 2 punch device
    • Electrical control system: Whole line adopted PLC control, Panasonic PLC.
    • Cutting method: Hydraulic powered, automatically cut to length after roll forming
    • Cutting mold material: Cr12 quenching treatment
    • Uncoiling: by 3T Manual uncoiler
    • Machine dimension: 8m L X 0.88 m W X 1.0 m H
    • Machine weight: about 8 tons.




    Main Components

    Equipment nameQuantity
    3T manual uncoiler1 set
    Levelling device1 unit
    Punching station (including punching mould)1 unit
    Main roll forming machine1 set
    Main drive1 unit
    Cutting unit1 set
    Hydraulic station1 set

    Control system
    ( including control cabinet)

    1 set
    Out put rack1 set
    Cutting mould3 sets


    Working Flow

    De-coiler-----leveling-----feeding-----roll forming-----punching-----hydraulic cutting-----production support table

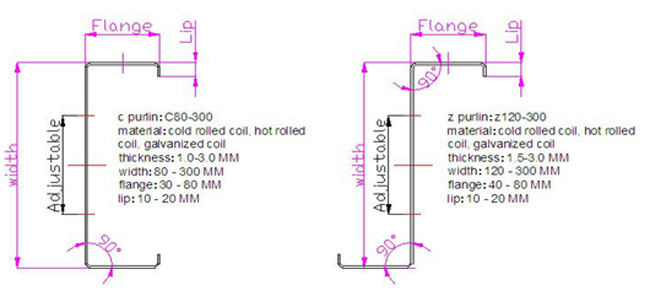

    Profile and Drawing Of Product




    Application

    The purlins produced by Purlin Roll Forming Machine are widely used in the main body stress structure of the large and medium-size construction, such as the plant, the warehouse, locomotive shed, hangar, exhibition building. it is known as economic and high efficient building material.


    Loading pictures


    Packaging Details: sea worth packing
    Delivery Detail: within 45 days


    Our Service

    1. Installation and training of rolling forming machine

    a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
    and also train your workers/technician face to face.
    b. Without visiting, we will send you user manual and video to teach you to install and operate.
    c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    2. After Service of rolling forming machine
    a. One year guarantee for whole machine.
    b. If there is any problem found of the rolling forming machine, we will repair it for free in one year.
