    Hydraulic Cutting Rack Roll Forming Machine Steel Cold Roll Forming Equipment

    Product Description

    Working flow:


    Decoiler-----feeding----- leveling ------roll forming-----punching ------ cutting----output table


    Spare parts


    NameNumber
    ToolsFeeler gauge1
    Size spanner1
    Inner hexagon spanner1
    Clamp1
    Standard spanner1
    Shifting spanner1
    Slotted screwdriver1
    Connecting screw cap flange20
    Oil pipe2
    Oil pipe connector10
    Other accessoriesChain6 pieces
    Chain connector20 pieces
    Bearing (Haerbin)40 pieces

    Technical description:


    No.ItemSpc.
    DecoilerTypeMaunal
    Inner diameter508-600mm
    Outer diameter1500mm
    Max capacity5tonss
    Leveling deviceNumber of Roller5
    FunctionIt is used for making the material flat before feeding into the roll forming machine.
    Roll forming machineMaterial thickness1-3mm
    Roller stands16
    Roller material45# steel polished and coated with chrome HRC55-60°
    Shaft diameter80mm
    Shaft materialhigh grade No.45 steel after treatment
    Trassimission1''chain
    Slide plate thickness18mm
    Main power11kw
    Speed8-12m/min
    Votage380v,3phase,50HZ
    Punching and cutting devicePunching mould materialCr12Mov, quenching HRC55-60
    Cutting mould materialCr12Mov, quenching HRC55-60
    TypeHydraulic
    Power7.5kw
    Control systemTypePLC Frequency Control System with touch screen
    PLC BrandJapan Panasonic
    Encoder BrandOmron
    Length Error±2mm
    Output tableFunctionIt is simple and used to load finished product
    Length6m

    Machine Photos

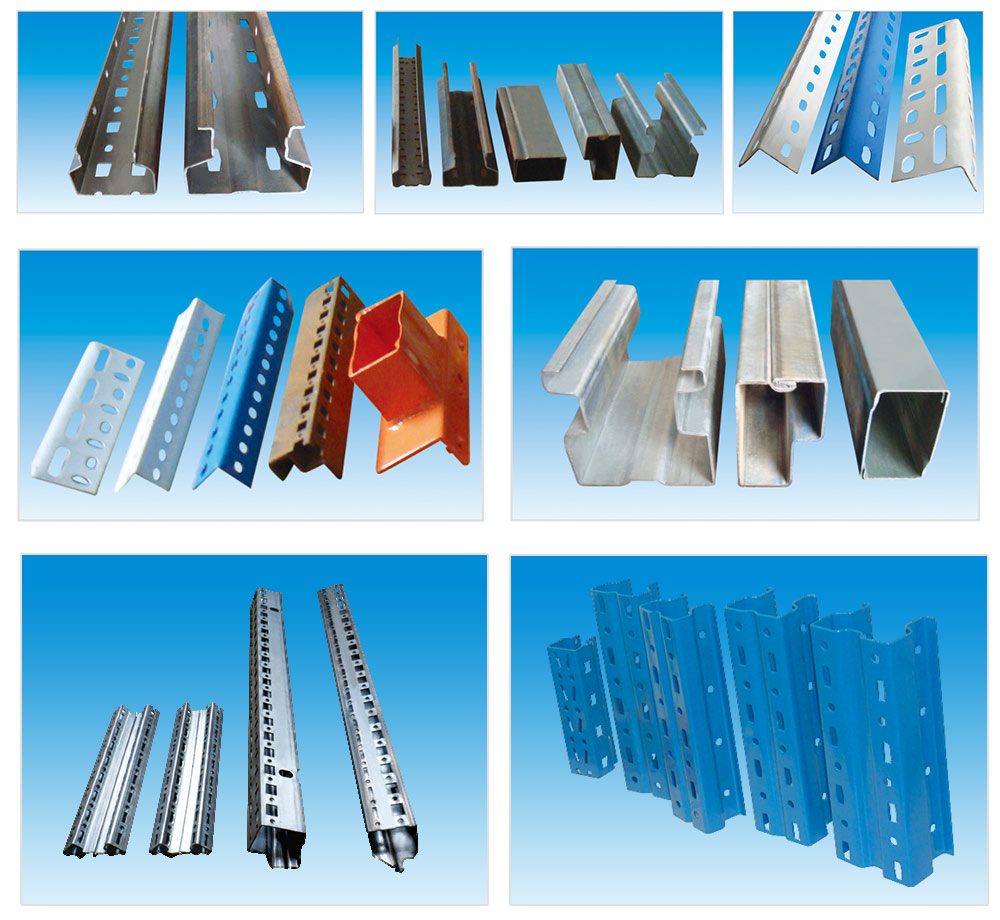

    Products
