    Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine

    Ask Lasest Price
    Brand Name : SUSSMAN
    Model Number : RF-RT
    Certification : CE, SGS, ISO
    Price : negotiable
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 10 stes per month
    Delivery Time : 60days after deposit
    • Product Details
    • Company Profile

    Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine

    Interlocking Coated Steel Roofing Tile Machine/ Interlock Roof Panel Making Machine


    Usage Of Roof Panel


    This machines can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period ,low noise, beauty, light weight.


    Technical Parameter



    Items

    Specifications

    Material of coil

    Material Thickness

    0.4-0.7mm PPGI and GI

    Profile width

    Effective Width 100mm

    304.8mm, 355.6mm, 457.2mm, 508mm


    Profile height

    According to customer’s profiles

    Un Coiler

    3 tons manual

    Forming system

    Rolling Speed

    About 12m/min

    Roller Stations

    About 14 stations

    Roller Material

    Gcr15 coated with chrome


    Maim Motor Power

    7.5 kw

    Motor cutting Power

    4kw

    Cutting

    system

    Material Of Cutting

    CR12mov with quench treatment

    Hardness

    HRC58-62

    Tolerance

    +-1.5mm

    Electrical control system

    Electric Source

    380V, 50HZ,3 phase

    Also can satisfy Customer’s requirey

    Control System

    PLC (Panasonic) as list in the note


    Weight

    About 3 tons


    Way Of Drive

    1 inch chain



    Machine Components

    Name

    Quantity

    3 tons hydraulic de-coiler

    1 set

    Main roll forming machine

    1 set

    Control box

    1 unit

    Hydraulic cutting device1 set

    Hydraulic station

    1 unit

    Out tables

    2 units


    Working flow


    Uncoiling—feedingwithguide——Rollforming——Cutting ——Products collecting



    Profile Drawing

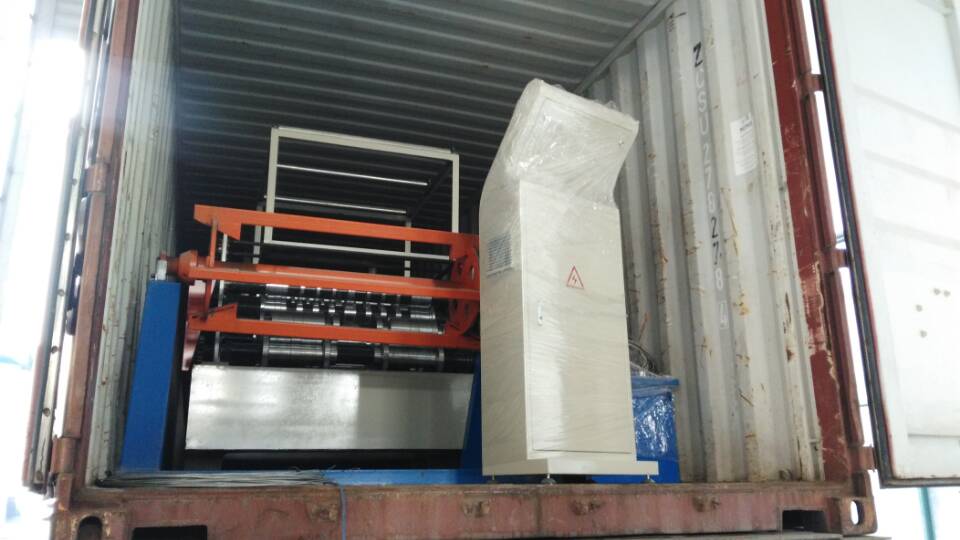

    Loading Pics


    Packaging detail:

    a.Fit for ocean shipping;
    b.Main body of machine is fixed to container; Rollers and shaft is covered with anti-rust oil; Spare parts in carton box.

    Delivery details:60 working days






    Company Introduction


    Sussman Machinery is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.


    Exhibition New:

    We will attend PERU ARCON EXPO
    Time:4th-7th,July,2018
    Address: Lima Jokey Plaza International Exhibition Center


    You are warmly invitated to visit our booth
