Cable tray roll forming machine

Machine Component List

Main Specifications

1. material width: 100-600mm

2. material thickness: 0.4-2.5mm

3. uncoiler: 5 tons manual

4. rolling speed: 8--10 m/min

5. roller stations: About 20 stations

6. roller material: GCr15 quench treatment

7. main motor power : 22Kw

8. cutting material: Cr15 with quench treatment

9. hydraulic cutting power: 5Kw

10. power supply: 380V, 50Hz, 3 Phase

11. control system: PLC Panasonic

Cable Tray Profile Drawings




















Advantage of roll forming machine


1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Working Flow

Decoiler- Levelling- Servo Feeding- Punching- Main Roll Forming - Cutting- Runout Table

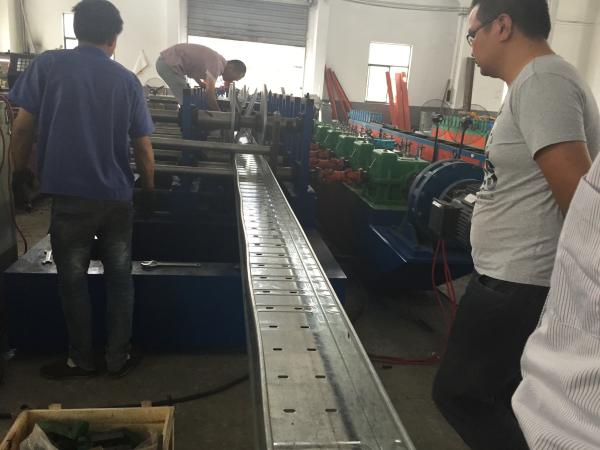

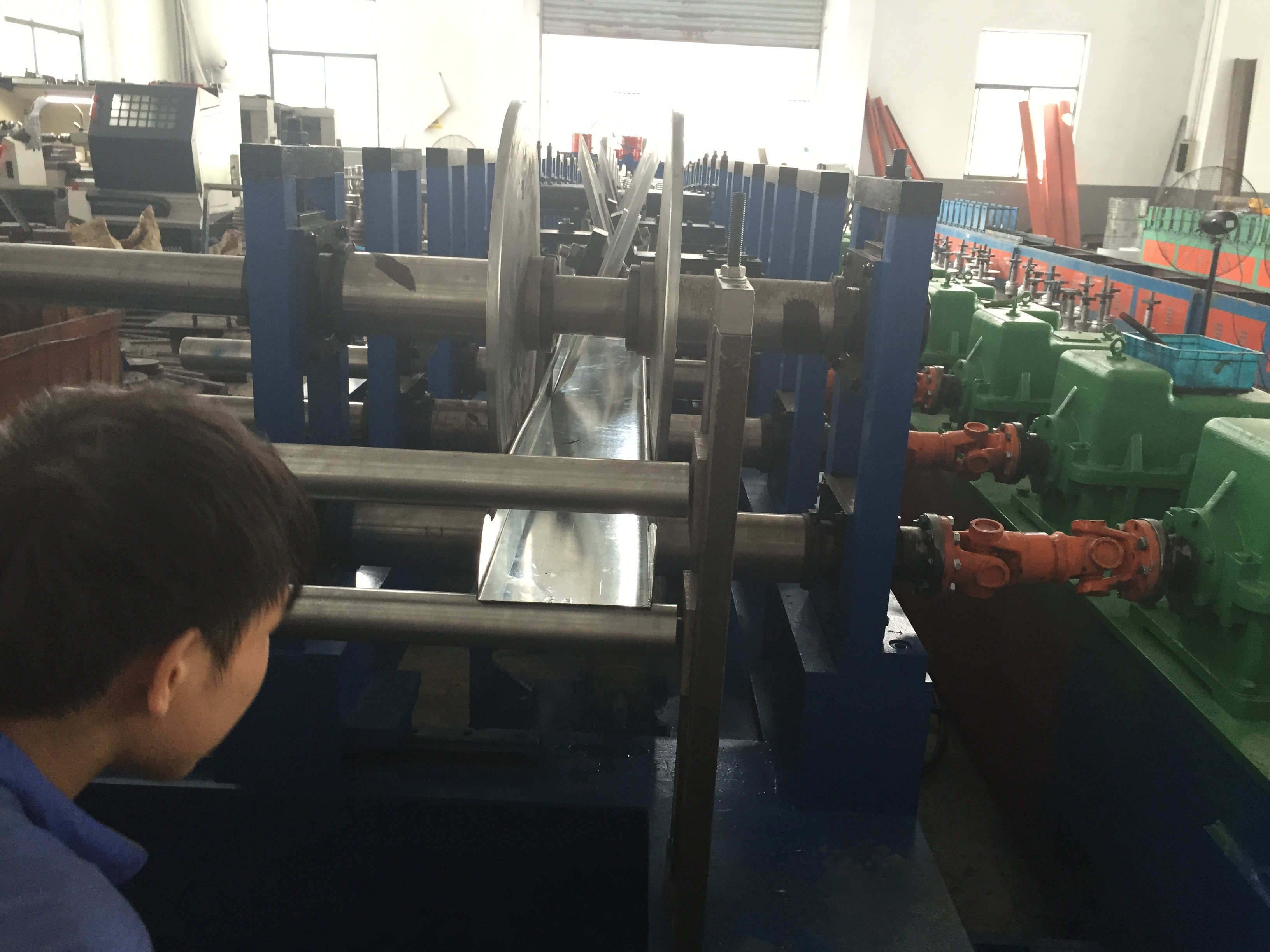

Machine Photo
