    Cr12 Mould Steel Framing Cold CZ Purlin Roll Forming Machine With Post Cutting

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-CZ
    Certification : SGS.CE.ISO
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P
    Supply Ability : 10 sets per month
    Delivery Time : 75 days
    • Product Details
    • Company Profile

    Cr12 Mould Steel Framing Cold CZ Purlin Roll Forming Machine With Post Cutting

    Cr12 Mould Steel Framing Cold C Z Purlin Roll Forming Machine With Per Cutting

    One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.

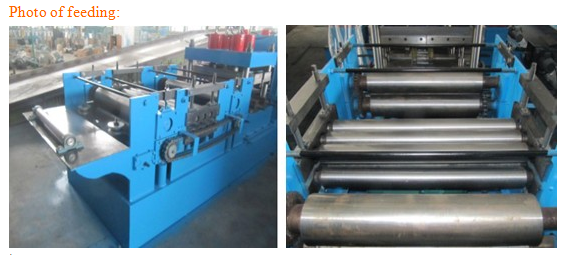

    C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
    It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 15m/min.



    C Z Purlin Technical Parameter

    ItemParameter
    Material thickness

    1.5-2.5mm Steel sheet

    Steel coil width

    200-600mm

    Size of purlin80-350mm

    Power
    Specs

    Voltage380V/3PH/50HZ
    Main Motor11kw
    Hydraulic motor7.5kw
    Hydraulic pressure10-12MPa





    Machine
    Specs

    Main forming stations18 steps
    Forming Shaftdiameter 75 mm, 45# steel thermal refining
    Roller MaterialGCR15 bearing steel
    Blade materialCr12 mould steel with quenched treatment 60-62°
    Punch Mould (if needed)Cr12 quenched
    Forming Speed0-15m/min



    Main Components

    3T passive decoiler1 set
    Leveling device1 set
    Punching device1 set
    Main roll forming machine1 set
    Control box1 unit
    Hydraulic cutting1 unit
    Out table 2m2 units
    Hydraulic station1 unit




    Working Flow

    Decoiler—feeding with guide—leveling—— roll forming—hydraulic punching—cutting----runout table


    Profile and Drawing Of Product








    Our Service

    Terms of Payment:
    a.Payment type: 30% T/T for advance payment and balance should be paid before delivery.
    b.Delivery time: 75days after received advance payment.
    c.Guarantee period: 12 months.

    Installation and Training:
    a.If buyers visit our factory and inspect the machines, we will teach you how to install and operate the machine, and also train buyer's workers/technicians on live.
    b.No visit, we will send u instruction manual and videos to teach you how to install and operate.
    c.If buyer needs our technicians to go to their factory, it needs round air ticket, accommodation and etc
    .


    After Service:
    a.One year guarantee for the whole machine.
    b.24 hours technical support by email, Skype, WhatsApp, Wechat or phone call.
    c.Suppose some parts were damaged, we would replace for free by express delivery within warranty period.
