    PLC Touch Screen Control Steel Silo Roll Forming Machines Gcr15 Steel Rollers

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SC
    Certification : CE. CCC. SGS. ISO
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per month
    Delivery Time : 75 working days after deposit
    • Product Details
    • Company Profile

    PLC Touch Screen Control Steel Silo Roll Forming Machines Gcr15 Steel Rollers

    Steel silo roll forming machine


    Technique parameter


    Item NO.

    Description


    Offered Specification


    1

    Suitable material thickness1.5-4.0mm galvanized coil S235JR

    2

    Max Material width1140mm

    3

    Forming Steps18 forming stations

    4

    Production line speed12-15m/min not including cutting stop time

    5

    Material of RollerGcr15, Quench HRC58-62 Plated Chrome

    6

    Material of Shaft45# Advanced Steel (Diameter: 76mm), thermal refining

    7

    Driven systemGearbox
    8Main Power with reducer

    90KW DC Motor 380V 50 HZ 3 phase



    9

    Hole PressHydraulic Punching with 3 sets of dies at one time

    10

    CuttingHydraulic Cutting Cr12mov Quench HRC58-62

    11

    Hydraulic Station Power:22kw

    12

    Hydraulic station pressure25-30Mpa

    13

    Control systemPLC Panasonic with tough screen

    14

    EncoderOmron

    15

    Electric partsSchneider

    16

    Tolerance6m+-1.5mm

    17

    Machine WeightAbout 10 ton
    18Machine dimension

    about 11500mm*1350mmm*800mm


    Machine List


    Number

    Machine listNumber

    1

    5 tons manual decoiler1 set

    2

    Feeding&leveling device1 set

    3

    Gear box drive system1 set

    4

    Main forming machine1 set

    5

    Curving device1 set

    6

    Hydraulic Cutting device1 set

    7

    Out table2 sets

    8

    PLC control system1 set

    9

    Hydraulic station1 set

    Working Flow of Steel Silo


    Decoiler--Feeding with guide--Straightening device--Main roll forming machine--Curving--Out put table

    A.Passive Decoiler..........................................................To load and uncoiling material
    (We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)

    B.Servo Feeding Applicator............................................To feed the material accurately

    C.Hydraulic/Press Punching...........................................To punch as requirements

    D.Roll Forming Unit.........................................................To roll form as requirements

    E.Hydraulic Cutting.........................................................To cut sheets as desired length
    (We also have non-stop hydraulic cutting system.)

    F.Output Table................................................................Support the finished products

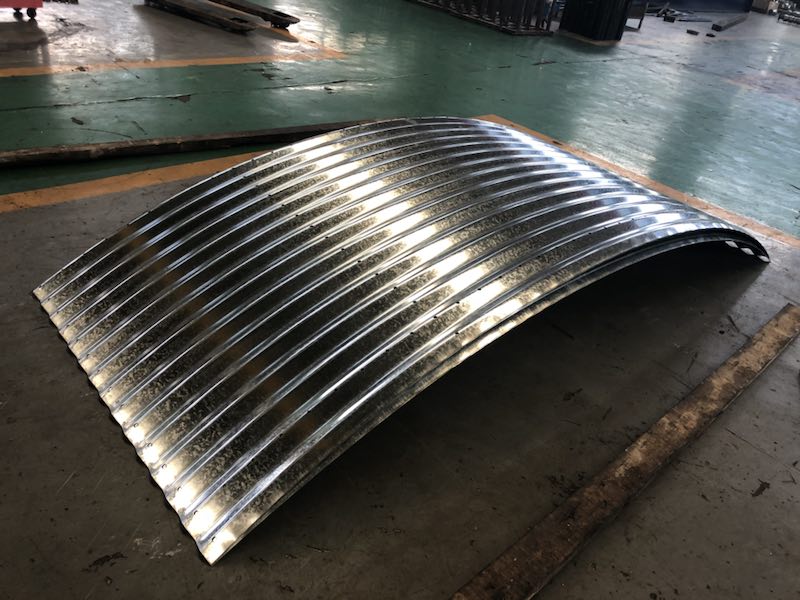

    Profiles drawing of product

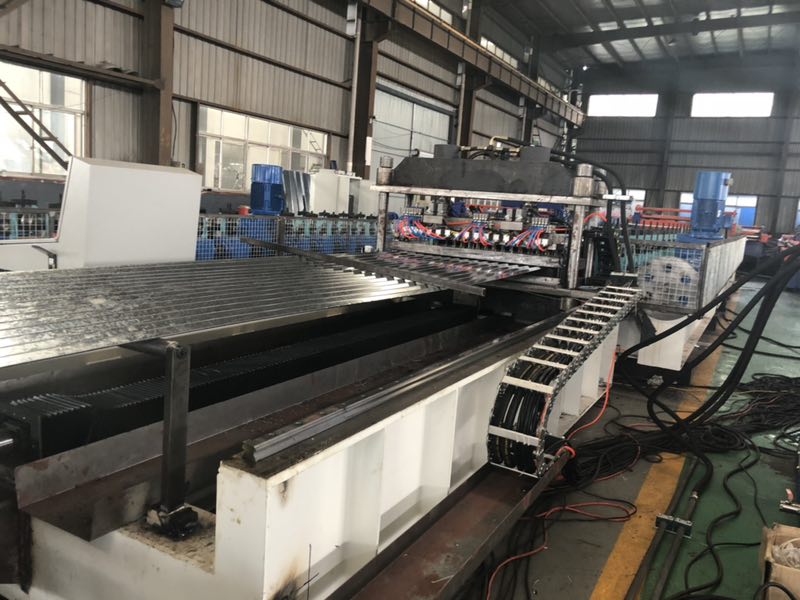

    Machine pictures
