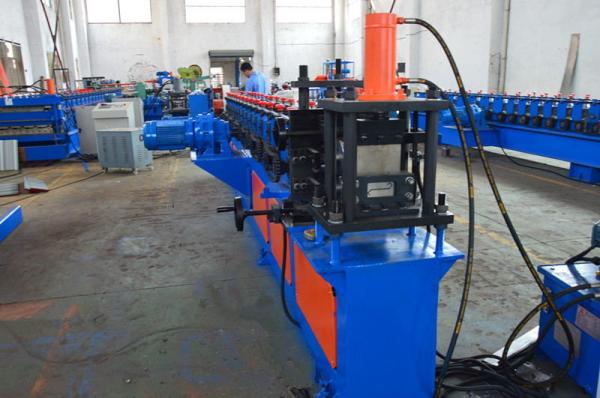

Cold Formed Steel Profile C Z Purlin Roll Forming Machinery CE
Standard
C Z Purlin Technical Parameter
Suitable material | Galvanized steel |
| Thickness of material | 1.5-3.0mm(can be changed according to customers need) |
Main motor power | 15KW |
Hydraulic station power | 5.5 KW |
Diameter of principal axis | Φ70mm |
Electric tension | 380V 3phase 50HZ |
Material of roller | CGr15 bearing steel |
Processing speed | 15m/min |
Processing precision within | 10m+/-1.00mm |
Material of cutting blade | Cr12 mould steel |
Kind of drive | Chain |
Roller station | 18 rollers |
Control System | PLC and Inverter |
| Weight | about 4 tons |
Machine components
Manual Deoiler
(1)Material coil inner diameter: 460mm-520mm
(2). Max coil Width:500mm
(3). Carrying capacity: 3T
Cutting System
(1)Blade and punching mold material: Cr12MoV steel with quenched
treated 60-62℃
(2)Cutting system: Advanced hydraulic drive, automatic cutting
after forming, no distorting or wasting, high level safety factor.
(3) Punching: automatic punching before forming, three round hole
can be done separately.
(4) Oil pump one set
Hydraulic station power
(1)Uncoilers loading capacity: Max 3000kgs
(2)Controlling system:PLC & Converter
Control Box: Panasonic Brand
(1) Power supplier: 380V, 60Hz, 3Phase (adjusted with the
requestment)
(2) Length & quantity measurement automatically;
(3) Length & quantity controlled by PLC,
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) The language in the touch screen: English and Chinese
(8) Unit of length: millimeter (switched on the control panel)
Out Table
Length : 1.5meters
Quantity: 2 Units

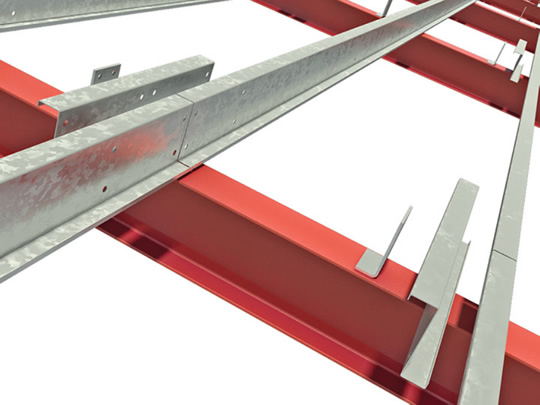

Profile and Drawing Of Product
Packing & Delivery
1. 40 feet container is required
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam
film
3. Spare parts and some small parts packed in plastic tooling box
4. All Components Fixed by steel wire with Container.
Our Service
Payment: 30% T/T in advance, balance should be paid before shipping
Delivery: within 75days after deposit.
Warranty terms:one year beginning on the date of commissioning
completion.
After-sale service
1. we will provide training and site installation guidance in the
earlier stage until you can correctly operate and install our
products.
2. The installation technicians (normally 2 people) shall install
and debug the equipment. The purchaser should pay the round-trip
ticket fees, accommodation and vise expense.
3. During the debugging period (from the day leave to the day back
to China) the purchaser should pay the technician USD50 per day.
