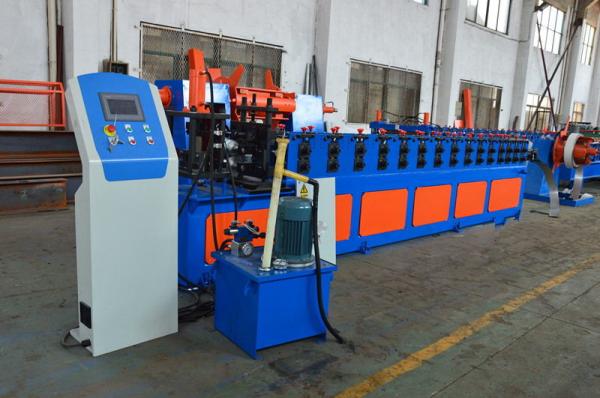

Automatic Hydraulic Cutting CZ Purlin Roll Forming Machine / Equipment For Metal

Automatic Hydraulic Cutting Metal Z Purlin Roll Forming Machine / Equipment

General description

It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 15m/min.

Z purlin roll former make up of decoiler, feeding leveling, hydraulic punching device, hydraulic cutting, PLC control system, hydraulic stations, run out tables.

C Z Purlin Technical Parameter

Suitable material	Galvanized steel
Thickness of material	1.5-3.0mm
Main motor power	15KW
Hydraulic station power	5.5 KW
Diameter of principal axis	Φ70mm
Electric tension	380V 3phase 50HZ
Material of roller	CGr15 bearing steel HR58-60
Processing speed	15m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12 mould steel
Kind of drive	Chain
Roller station	18 rollers
Control System	PLC and Inverter

Working Flow

Decoiler—feeding & leveling—punching—cutting— roll forming—run out table

Profile and Drawing Of Product

Each part of machine

Packing & Delivery

1. 40 feet container is required

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film

3. Spare parts and some small parts packed in plastic tooling box

4. All Components Fixed by steel wire with Container.

Our Service

Payment: 30% T/T in advance, balance should be paid before shipping
Delivery: within 75 days after deposit.

Warranty terms:one year beginning on the date of commissioning completion.

After-sale service

1. we will provide training and site installation guidance in the earlier stage until you can correctly operate and install our products.

2. The installation technicians (normally 2 people) shall install and debug the equipment. The purchaser should pay the round-trip ticket fees, accommodation and vise expense.

3. During the debugging period (from the day leave to the day back to China) the purchaser should pay the technician USD50 per day.
