Name: Custom PU Sandwich Panel Production Line 40mm 250mm Thickness EPS Sandwich Panels
Brand: Sussman
Price: 1 USD

Add to Cart

Capacity Quality CE Certificated PU Foamed Sectional Door Panel production line

Technical Parameter

NO.	ITEM		UNIT	PARAMETERS	REMARK
1	PANEL MATERIAL	TYPES		Pre-painted steel; Aluminum; Platinum	CUSTOMIZED
		Hardness	MPa	≤350
		Thickness	mm	0.4-0.8
		Coil width	mm	≤1250
		Coil ID	mm	500.600
		Coil Weight	T	5.8.10
2	FOAM MATERIAL			EPS POLYURETHANE	CUSTOMIZED
3	Length of sandwich panel:		m	3-15
4	Length of sandwich panel:		mm	≤1050	CUSTOMIZED
4	Length of sandwich panel:		mm	≤200	CUSTOMIZED
5	SPEED OF OUTPUT		m/min	3-7
6	PRESSURE OF FOAM INJECTION		bar	150-200
7	Length of round convey		m	21	CUSTOMIZED
8	Controller			PLC INVERTER
9	Total Power		Kw	300
10	Overall dimensions		m	110x15x5Production Line Laylout

Capacity Quality CE Certificated PU Foamed Sectional Door Panel production line

Main Component of line

NO.	name	quantity
Main roll former
1	Un-coiler (5 tons )	2
2	Embossing and firm machine	2
3	Automatic feeder and leveler (N.C)	1
4	Press machine(200ton)	1
5	Square mould	1
6	Upper roll former	1
7	Mark machine (N.C)	1
8	Down panel roll former	2(two types)
9	Double layer construction platform	1
10	Double bridge device and conveyor	1
11	Other conveyor	1
12	Hydraulic system	1
13	Electrical control system	1

2. PRE-HEATING SYSTEM
1	Heating house	1
2	pre-heating system	1
3	electrical control system	1

3.HIGH PRESSURE FOAM MACHINE
1	High pressure continuous foam machine	1
2	Pursing output device	1
3	Electrical control system	1
NO.	Name	Quantity
4. DOUBLE BELT SYSTEM
1	Double belts system(24M)	1
2	Chain supporting system of two side	1
3	Side-chain system	1
4	Heating machine for double belts	1
5	Electrical control system	1

5. Thickness and plastic mould
1	Mould & Plastic mould blade	1

6. CUTTING SYSTEM
1	Cutting saw blade	1
2	Conveyor with output table	1
3	Electrical control system	1

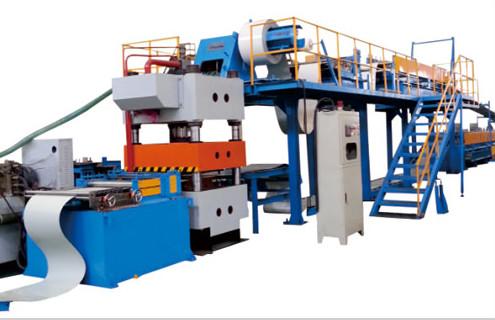

Machine pictures
