    1.5 - 2mm Steel Door Frame Roll Forming Machine 11.0Kw Cold Roll Forming Equipment

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-DF
    Certification : CE, SGS, ISO
    Price : negotiable
    Supply Ability : 10 set per months
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    1.5 - 2mm Steel Door Frame Roll Forming Machine 11.0Kw Cold Roll Forming Equipment

    220mmWidth Profile Width Roll Forming Machinery For Door Frame 2mm Thickness Galvanized Steel


    Technical Parameter


    Technical parameters:
    1Name of commodity & specificationXN-slat machine
    2Main motor power3kw, 3 phase
    3Hydraulic motor power3kw
    4Hydraulic Pressure10-12MPa
    5Voltage380V /3phase/ 50 HZ (or as your requirement)
    6Control SystemPLC Delta Inverter
    7Main Frame300mm H-Beam
    8Backboard Thickness14mm
    9Chain Size20mm
    10Feeding Materialcolor steel coils
    11Feeding Thickness0.3-1.2mm
    12Productivity8-12m/min
    13Roll Station11
    14Roller Diameter70mm
    15Roller material45# steel
    16Cutter materialCr12 , quenched
    17Cr-Plating Size0.05mm
    18Overall Size3000×800×1000mm
    19Total Weight2T
    20ComponentsManual Uncoiler -------------------1 set
    Guiding Platform------------------1 set
    Coil Strip Leveler------------------1 set
    Main Machine of Roll Forming------1 set
    Electric-Motor---------------------1 set
    Cutting Device--------------------1 set
    Hydraulic Station------------------1 set
    PLC Control-----------------------1 set
    Supporter Table-------------------1 set
    21WorkflowManual decoiling----feeding and guiding----roll forming----cut to length----run out table
    22Packagenude in the container
    23Minimum order quantity1 set
    24Payment termsT/T(30% T/T pay in advance, the remaining 70% pay before ship)
    25Delivery time30 working days later after receiving the deposit
    All technical parameters can be changed, according to user's need.

    Working Flow


    De-coiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table


    Machine Componnets


    NameQuantity
    Decoiler1 set
    Level device1 set
    Main forming machine1 set
    Hydraulic punching1 set
    Hydraulic cutting machine1 set
    Cutting blades5 sets
    Straightening1 set
    PLC Control Panel1 set
    Run out table2 sets

    Profile drawing

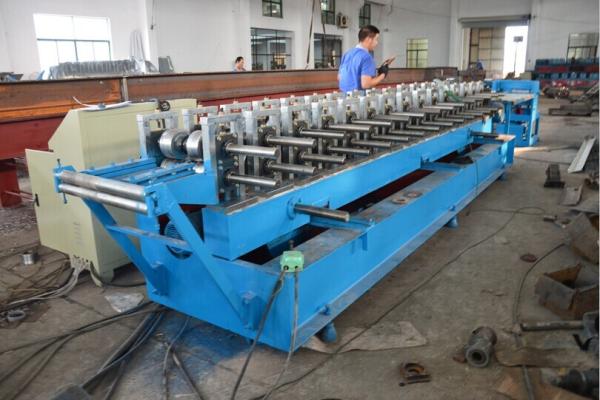

    Machine pictures




    Quality Control


    1.We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
    2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
    3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
    Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.
