Roller 12 Steps Rolling Shutter Slat Door Integrated Machine for Australia

Working flow

De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table

Machine component

3T Passive De-coiler

Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg

Leveling device

1.7 rolls leveling, 3 rolls up and 4 rolls down
2.Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface
3.Max Leveling Raw Material width: 300mm

Hydraulic station

1. hydraulic station pressure: 12MP
2. power of hydraulic station: 4KW

Hydraulic Cutting

1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm

Control Box

(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)

(2)Length & quantity measurement automatically;

(3)Length & quantity controlled by PLC,

(4)Length inaccuracy can be amended easily.

(6).Control panel: Button-type switch and touch screen

(7)Unit of length: millimeter (switched on the control panel)

Output Table

Length : 2m
Quantity: 2 units

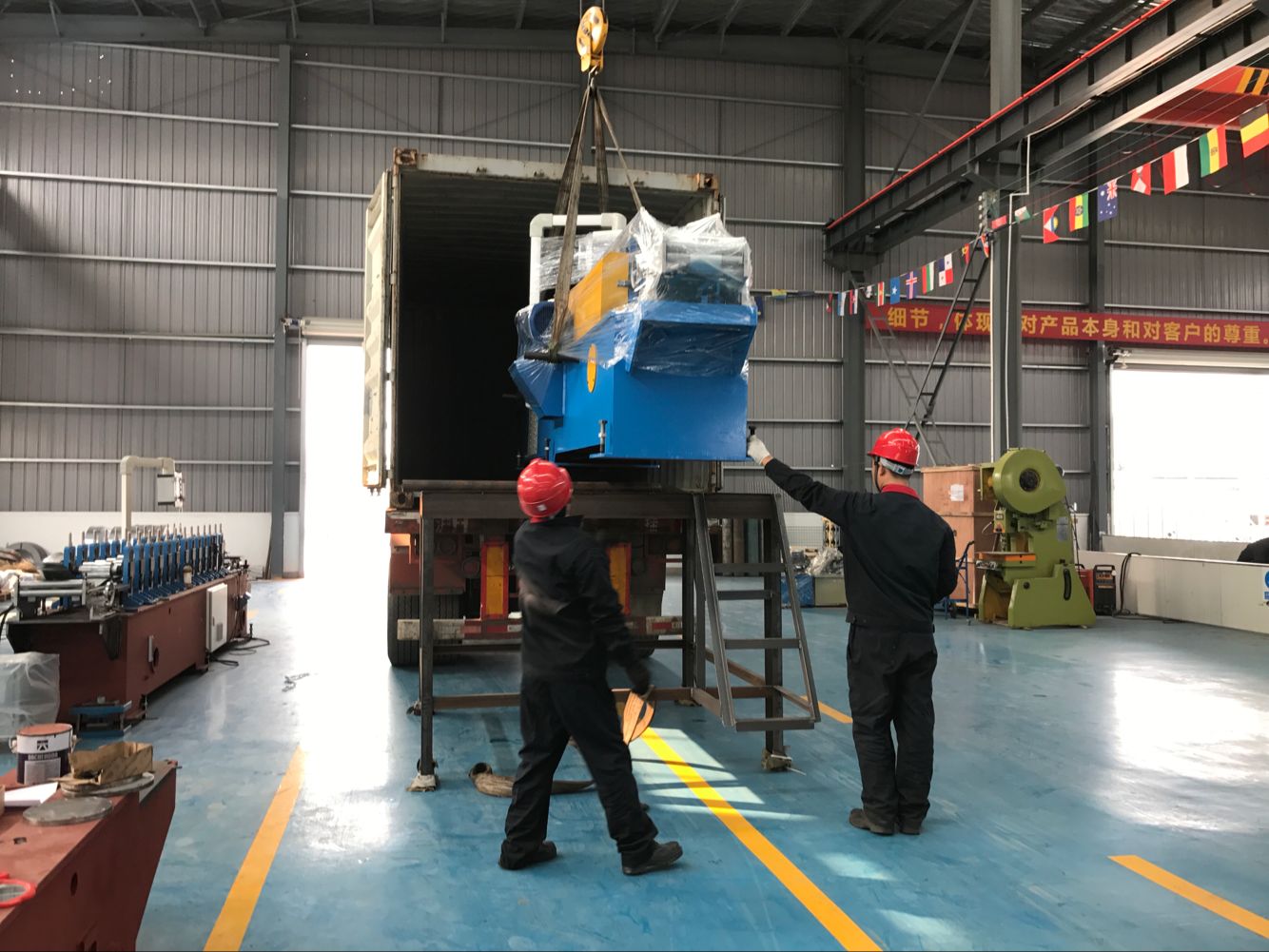

Package& Delivery

We fixed our machine by steel wire and all of the machine is by pplastic film

Delivery time: 60 days after deposit

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
