Single Chain Transmission 7.5Kw Door Frame Roll Forming Machine 380V 50HZ

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-DF
Certification :	CE
Price :	negotiable
Payment Terms :	T/T L/C
Supply Ability :	10 sets per months
Delivery Time :	60days after deposit

Add to Cart

Product Details
Company Profile

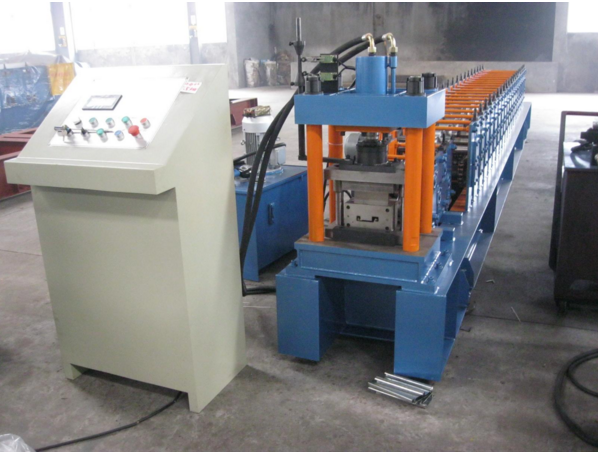

Single Chain Transmission 7.5Kw Door Frame Roll Forming Machine 380V 50HZ

Single Chain Transmission 7.5Kw Door Frame Roll Forming Machine 380V 50HZ

Door Frame Technical Parameter

Name	Description
Steel Sheet Thickness	1.0-2.5mm (depend on requirement )
Transmission material	45# steel, high frequency quenching
Transmission way	single chain
Material of blad	Cr12, quenching treatment
Capacity of Decoiler	3 ton passive decoiler
Forming Speed	12-15m/min
Roller Groups	about 18 stations
Roller Material	GCr15, high frequency quenching treatment, HRC58-62
Feeding material	galvanized steel or black steel
Principal Axis	45# high grade steel
Main motor power	7.5 Kw
Hydraulic power	5.5Kw

Door Frame Main Components

S.N	Equipment name	Quantity
1.	3T passive un-coiler	1 set
2.	Main roll forming machine	1 set
3.	Hydraulic cutting	1 set
4.	Control system (including control box)	1 set
5.	Out tables	2 sets

Advantage for Door Frame

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.

5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.

8. Long life: Ensure you our produce machine’s lifetime more than 15 years.

Working Flow of Door Frame

Decoiler----Feeding---Roll forming---Cutting---Run out tables

Profiles of Door Frame
