0.4mm-0.7mm Colour Steel Automatic Roof Panel Roll Forming Machine With Panasonic PLC Control

Technical Parameter

1. Rolling Speed : 10-12m/min(cutting time is not include)

2. Steel sheet Thickness: 0.25-0.8mm color painted sheets

3. Control System: PLC:

4. Roller Stations: 18 stations

5. Roller Material : 45# forge steel, coated with chrome

6. Shaft Material and DIA: ￠75mm,material is 45# forge steel

7. Maim Motor Power: 7.5kw

8.Hydraulic Pressure: 12Mpa

9. Material Of The Stations: Wall plate

10. Tolerance: +1.5mm

11.Power supplier:220V, 60HZ,3 phase

12.Way Of Drive:1.2 inch single chain

13. Color Of The Machine :blue

14. The size of the forming machine:8000*1500*1000mm

15. Machine weight: about 6 tons

Working Flow

Uncoiling—Feedingwithguide——Rollforming—Cutting—Products collecting

Machine Componnets

Roof Panel Profile

Machine picture

Loading

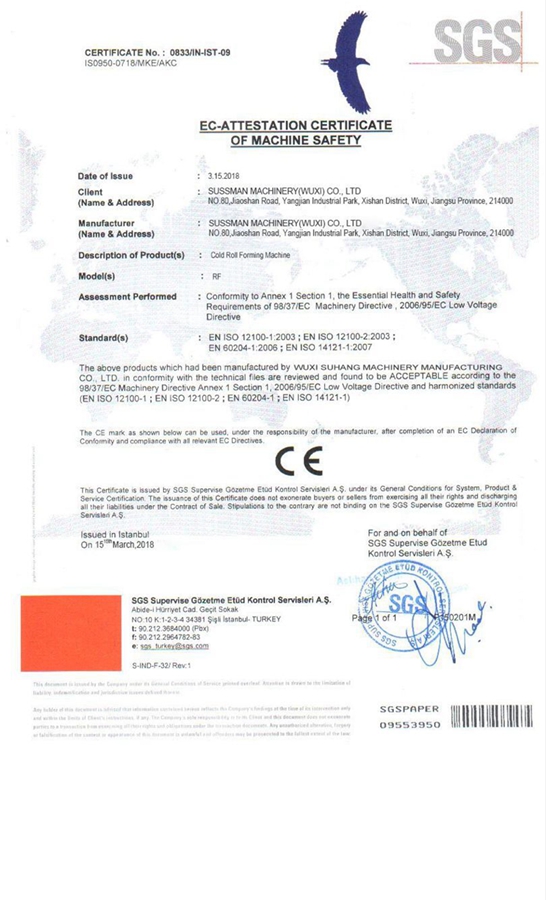

Certificate

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
