3 Ton Passive Decoiler Door Frame Roll Forming Machine Hydraulic Punching

1. Technical Parameter

• Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
• Working Speed: 12-15 meters / min
• Forming Steps: 18 stations
• Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
• Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
• Driven system: gear box drive
• Main Power with reducer:15KW WH Chinese Famous
• Cutting: Hydraulic Cutting Cr12mov
• Material of Cutting Knife: Cr12Mov, Quench HRC58-62
• Hydraulic Station Power: 7.5KW
• The whole machine is controlled by industry computer-PLC.
• PLC made in Japan

2. Working Flow

3. Machine Components

4. Profile Drawing

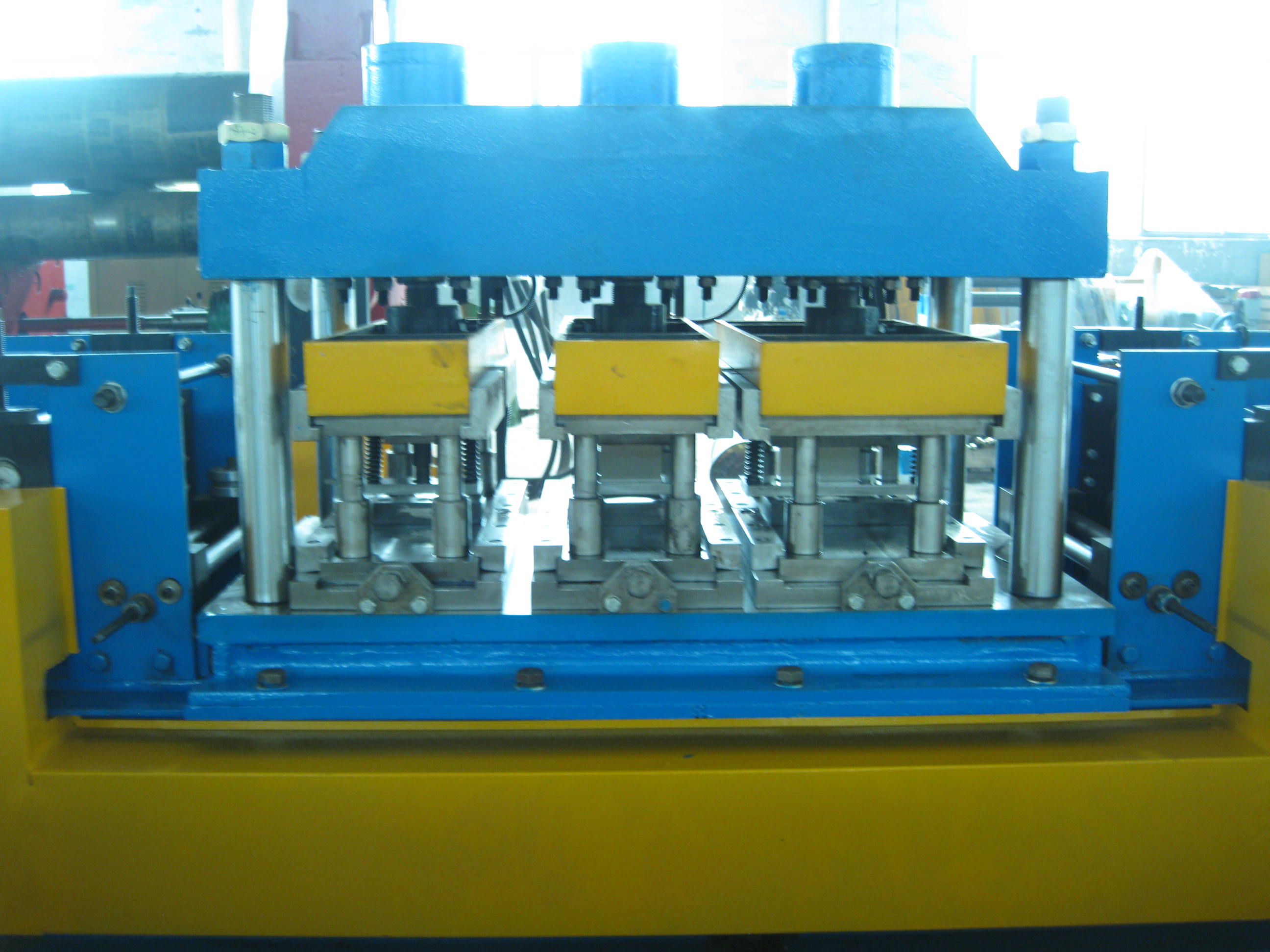

5. Machine Photo

6. Our After-Sales Service Commitments

Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipments:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipments, and provide Buyer with answers to their questions and related issues;

2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussmanwill provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipments for the Buyer, the Buyer can send their personnel to participate.

3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;

4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
