Hydraulic Cutting Chain Drive Galvanized Steel Sheet Door Rail Rolling Forming Machine 7.5Kw Main Power​

Door Rail Technical Parameter

1. Steel Sheet Thickness: 1.5-2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching, circular pitch: 38.1, number of teeth:13
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 8-10m/min
7. Roller Groups: 12 stations upper and 16 stations down
8. Roller Material: Cr40 steel, high frequency quenching treatment, HRC58-62
9. Material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw

12. Hydraulic Power: 4Kw

Door Rail Main Component

Working Flow of Door Rail

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables






Profiles of Door Rail

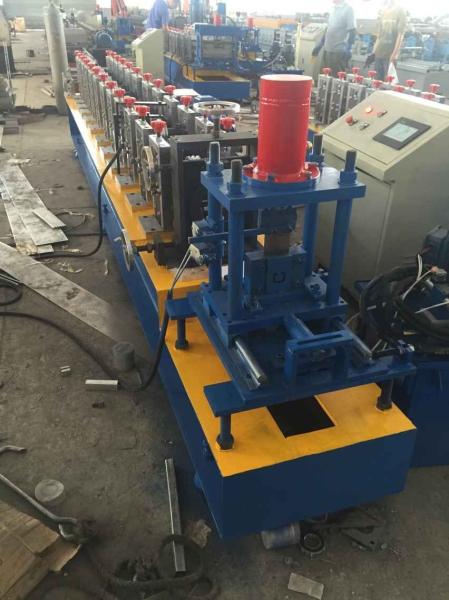

Machine pictures
