40mm and 60 mm G.I Steel Sheet Metal Shutter Door Shaft Roll Former / Roll Forming Machinery With Passive Decoiler

Advantage for Octagon Pipe

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Technical Parameter

1. Steel Sheet Thickness: 0.4-1.2mm Galvanized Steel Or colour steel (depend on requirement )

2. Cutting Way: Hydraulic cutting or saw cutting

3. Hydraulic station power: 4Kw

4. Transmission way: chain drive

5. Chain: 1 inch single chain

6. Capacity of Decoiler: 3 Ton passive decoiler

7. Forming Speed: 10-15m/min

8. Roller Groups: about 20 stations main roller ( depends on the profile drawing)

9. Roller Material: 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 7.5 Kw

Main Components

Applications

Be the series part of shutter door.

Working Flow of Octagon Pipe

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables





Profiles of Octagon Pipe

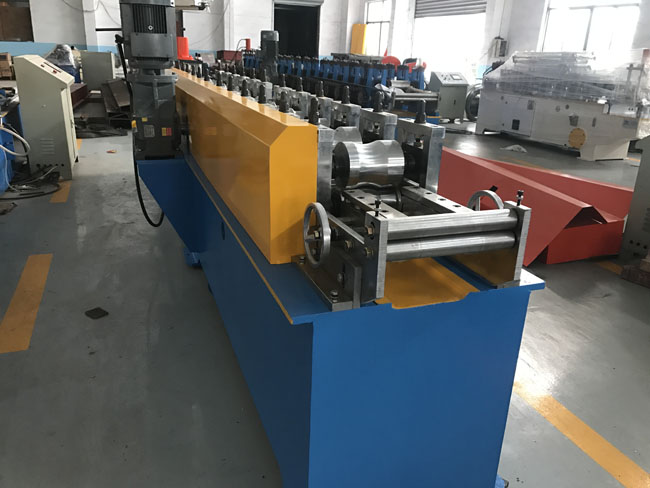

Machine pictures

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
