Roller Material GCr15 Steel Shutter Door Roll Forming Machine Shaft Diameter 50mm

1. Technical Parameter

• Materials to form shutter door: 0.7-1.2mm galvanized coils, Feeding width: 184mm
• Forming steps: about 12 steps
• Material of rollers: GCr15 steel, precision-machined, high frequency quenching HRC58-62 Diameter of rollers: ＞￠150
• Material of main shaft : 45# high quality steel (diameter＞￠50)
• Chains’ material: 45# steel, high frequency quenching, circular pitch:38.1
• Cutting: hydraulic cutting; quenching HRC58-62
• Electronic control: PLC control Panasonic Brand
• Dimension of machine: 4500mmX500mmX800mm
• Working speed:12-15m/min
• Drive system: chain drive, 5.5KW main motor power

2. Working Flow

De-coiler—→level device—→main roll forming machine—→punching—→ hydraulic cutting—→ run out table

3. Machine Components

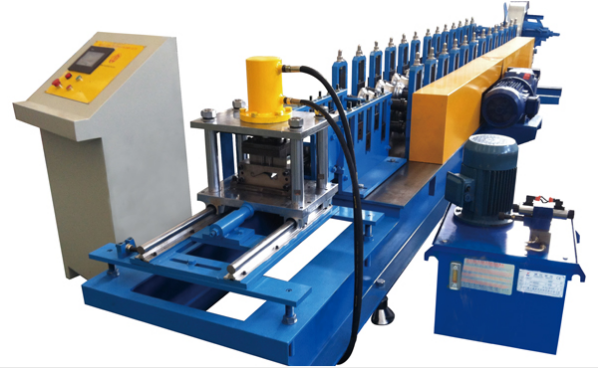

4. Machine Photo

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
