Customized Fly Saw Cutting Shutter Door Roll Forming Machine Shutter Door Series Machine

Octagon Pipe Technical Parameter

1. Steel Sheet Thickness: 0.4-1.2mm (depend on requirement )
2. Hydraulic power: 4Kw
3. Transmission way: chain
4. Chain: 1 inch single chain
5. Capacity of Decoiler: 3 Ton passive decoiler
6. Forming Speed: 10-15m/min
7. Roller Groups: about 20 stations main roller
8. Roller Material: 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
9. Principal Axis: 45# high grade steel with quenching treatment
10. Main Motor Power: 7.5 Kw

Octagon Pipe Main Components

Applications

Be the series part of shutter door.

Working Flow of Octagon Pipe

Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables








Profiles

we done bofore

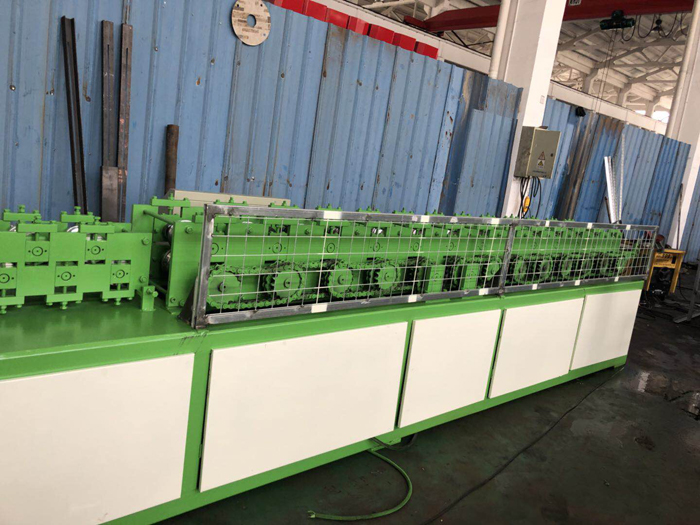

Machine pictures

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
