0.8 - 1.2mm Thickness 12 - 15m/min Shutter Door Series Machine 5.5Kw

1. Square Box Forming Machine Technical Parameter

• Materials: G.i
• Work speed: 3-15m/min
• Forming steps: About 16 steps
• Material of rollers: GCr15 steel, precision-machined, high frequency quenching HRC58-62
• Material of main shaft : 45# high quality steel
• Chains’ material: 45# steel
• Main motor power: 5.5KW
• Cutting : Hydraulic cutting, 4kw
• Electronic control: PLC control
• Dimension of main machine: About 6500mmX500mmX1000mm

2. Work Flow of Square Box Forming Machine

De-coiler—→level device—→main forming machine—fly saw cutting—→ run out table

3. Square Box Forming Machine Composition

4. Profile

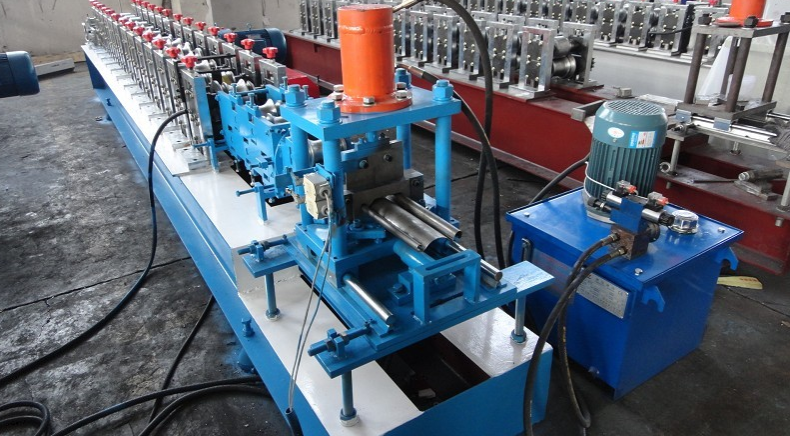

5.Machine pictures

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
