0.3 - 0.8mm Two Free Style Profiles Double Layer Roll Forming Machine 15m/min Forming Speed

Technical Parameter

1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )

2. Hydraulic power: 5.5Kw

3. Transmission way: single chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 5 ton passive decoiler

6. Forming Speed: 10-15m/min

7. Roller Groups: 16-18 stations main roller

8. Roller Material: 45# high grade steel, quenching treatment

9. Roller Diameter: 180mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 7.5 Kw

Main Components

Applications

Wall Panel, Roof Panel, Tile Roof Panel

Working Flow

Decoiler ---- Feeding --- Roll Forming ---- Cutting ---- Run out table

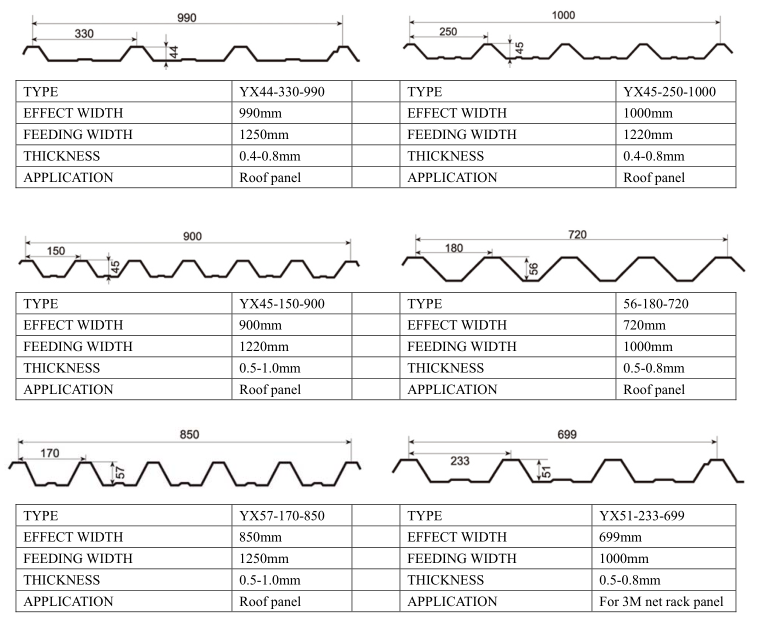

Profiles of Wall and Roof Panel

Machine pictures

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
